BX4 4x Outlet Bluetooth® Tap Timer

The new BX4 4x Outlet Bluetooth® Tap Timer controls watering for your medium to large sized garden. The 4x outlet is water restriction friendly and allows you to make adjustments from the comfort of your own mobile. Easily choose from different watering durations, flexible scheduling and interval watering, all from the iGardener™ App.

  • Water restriction friendly with flexible scheduling, 7-day, interval and more
  • Bluetooth® control with iGardener™, available on the App Store and Google Play
  • 20m range from Tap Timer to smartphone (connects to one device only)
  • Manual ON/OFF button on Tap Timer
  • Long watering times from 1 minute, to 23 hours 59 minutes
  • Misting control with spray intervals down to the second
  • 2 Year Warranty

iGardener Smartphone App

For FAQ and support, please visit our help centre

Outlets: 4
  • CO3111 BX1 Bluetooth Tap Timer
  • CO3112 BX2 Dual Outlet Bluetooth Tap Timer
  • BX4 4 Outlet Bluetooth Tap Timer
Available at Bunnings
SKUCO3114 Categories, Tag
Barcode: 9319841521171
Close
Specifications

Specifications

MaterialPlastic
Colour (Tap Timer)Grey
Weight0.819kg
Water RatingIP54
Water Pressure50kPa – 800kPa
Water Flow1L/min – 35L/min
CordlessYes
WirelessYes
Auto Shut OffYes
Battery Back-UpYes
Digital DisplayNo
Hose-End CompatibleYes
Manual BypassYes
Maximum Cycle Time23hr 59min
Number of Cycles3
Number of Zones4
Odd/Even Day ProgramYes
Water restriction friendlyYes
ProgrammableYes
Range from Tap Timer to mobile20m
Batteries Required4 x AA
Close
Manual

Manual

View BX4 Manual

LED patternMeaning
Red/Blue alternate flashStart up pattern (recognition of batteries/power)
Blue flash 3 timesStart up complete
Quickly flashing blue (10 times)Updated over Bluetooth
Single blue flashResponse to pressing button – manual on or off
Blue flash 0.5 seconds on, 20 seconds offWatering
Purple (pink) flash on start upStart up error – press Bluetooth button (start/stop) to clear
Purple (pink) solid lightError – reset device to clear
Red light on start up
Red flash 0.5 seconds on, 15 seconds off
Low battery warning – timer is not able to operate normally in this mode. Replace batteries.
Red Flash 3 timesStart button pressed when dial is in ‘OFF’ position
Start button pressed when timer is in low battery mode

Resetting the BX Tap Timers:
Before a hard reset, we recommend that the timer is removed from the iGardener app – use the ‘bin’ icon at the top of the page to remove the highlighted tap timer prior to reset –

BX1 hard reset – remove battery compartment for 2min, press and hold button as you push the compartment back in, device will flash blue quickly, let go of button. Add timer back into iGardener.

BX2 hard reset – move dial to ‘OFF’, press and hold the button, watch for 3 quick red flashes, let go of button. Add timer back into iGardener.

BX4 hard reset – move dial to ‘OFF’ press and hold the button, watch for 3 quick red flashes, continue to hold for 6 seconds, 3 more red flashes will occur, let go of button. Add timer back into iGardener.

Close
Scheduling Options

Scheduling Options

  • 7 Day – allows manual settings for each individual day
  • Interval Days – watering will occur every few days, as set by the user. Ideal for homes with automated watering restrictions.
  • Odd Days – watering will occur on the odd days of the month, with the option to skip the 31st of the month. Ideal for homes with automated watering restrictions.
  • Even Day – watering will occur on the even days of the month. Ideal for homes with automated watering restrictions.
  • Cycle – watering schedule will observe an allocated delay time and water for the allocated run time on selected days. Ideal for misting systems, GreenWalls and greenhouses.
Close
Reviews

Customer Reviews

Based on 13 reviews
31%
(4)
8%
(1)
8%
(1)
8%
(1)
46%
(6)
A
Adam Quigley
My BX4 lasted 3 months

Listen to all the other reviews. This is not a good quality product. Our BX4 died after 3 months and almost took our garden with it.

Can't be bothered going into all the details for why this was such a waste of money. I've since bought an Orbit 4 Station unit and the difference in quality is astonishing. Do not waste your time with this BX4 product.

The Bluetooth failed. The system leaked. I needed to go through a laborious process removing batteries and pairing my phone every single time I wanted to program the system with any change.

I bought it from Bunnings and paid the price for shopping based on convenience. Will never buy a Holman Industries product again.

Thank you for sharing your experience with our BX4 system, and we're truly sorry to hear that it did not meet your expectations. Your feedback is crucial to us as we strive to improve our products. We understand your frustration with the Bluetooth and leaking issues, and we apologize for the inconvenience this has caused. If you need further support or feedback. Please don't hesitate to contact our Customer Service Team at support@holmanindustries.com.au. Thank you, your Holman Team.

D
DELL HOOK (Adelaide, Australia)
Do not buy.

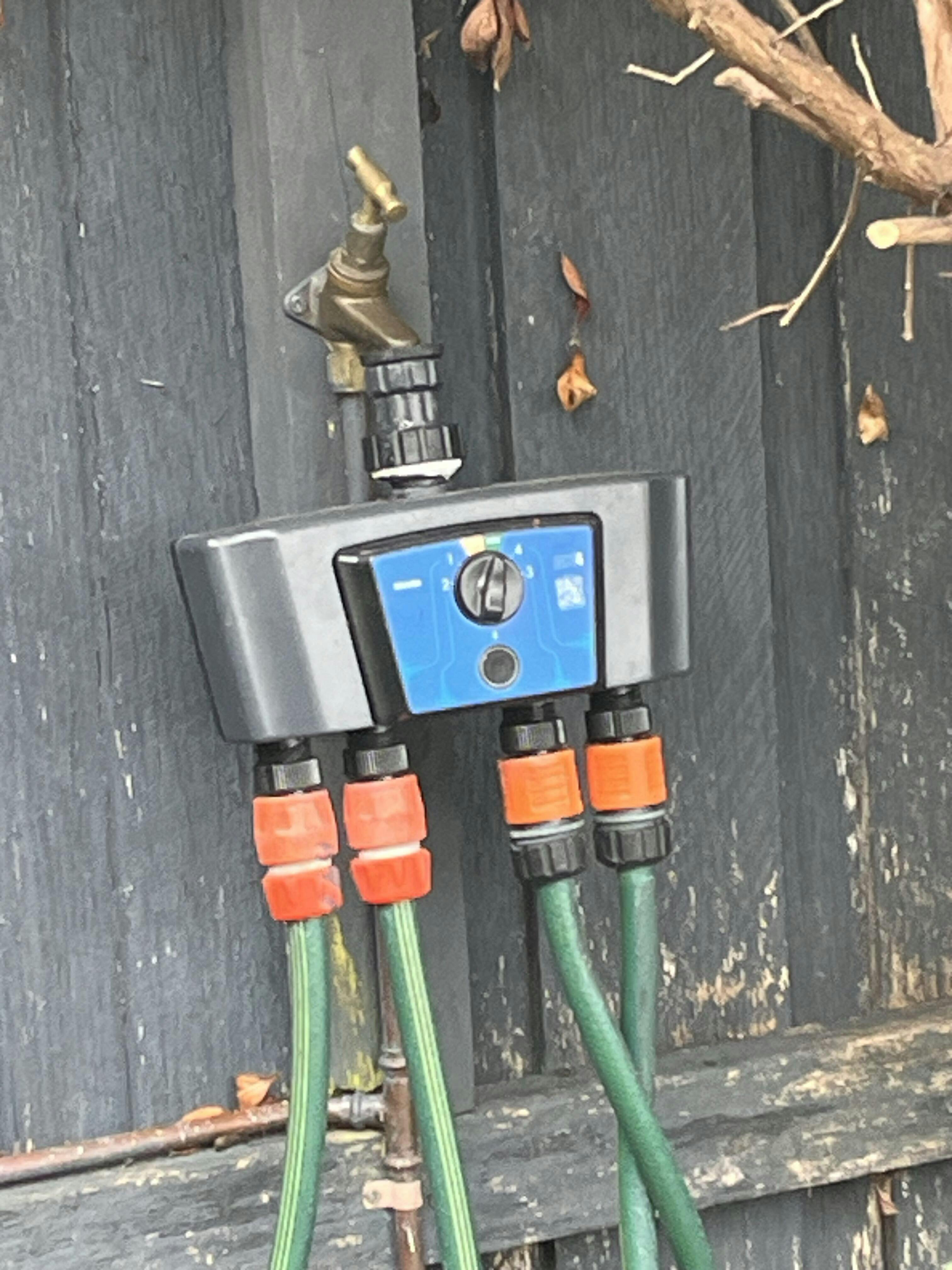

I am on my 3rd 4 outlet unit in under 3 years. Unfortunately, I haven’t kept receipts to verify my purchases. All the units worked beautifully for the first few months. They were just what I wanted. Then, around a year mark, stopped turning on automatically and eventually even manual setting didn’t work, valves wouldn’t open. On my second unit, only one valve opened when using manually when I gave up on it. And this occurred when we were away on vacation. My last unit pictured is not working automatically now, just manually. Cannot recommend them for the long term.

S
Steve (Sydney, Australia)
Excellent so far

I must admit that after reading the reviews I was somewhat sceptical, however common products in the past and never really had too many issues.
I cannot talk on the construction or longevity of the product as I've only just purchased it, however as an old tech head I found reading the instructions carefully I had no issues programming the precise patterns that I wanted. The only issue I could find was that I could not turn off starts/synced function once activated. Not really a big issue but a small glitch in the matrix.
Excluding longevity and construction this device seems perfect for my needs and I would recommend it.

I
Ian
Absolute rubbish, do not waste your money.

Already had one replaced. The second one is as inconsistent as the first. The hardware is poor, and the software worse, and the unit can only be paired with one mobile. Out of warranty, I'm planning on removing it and smashing it so that I get at least a little satisfaction from it!

M
Matthew Astolfi (Sydney, Australia)
Great but break down

I’ve had two of the BX4 timers and after a year of owning them both had the issue of displaying a solid red LED which should mean low batteries. I tried 3 different sets of batteries, even buying more brand new ones just in case of a bad batch. Unfortunately the red LED persisted.

I really loved the product while it works because it has Bluetooth and the app is great with more settings than most other systems out there.

Bunnings had an issue with exchanging them because they were more than a year old so just be warned. Hopefully you’ll have better luck than me but no more for me.

J
Jeremy (Perth, Australia)
Works beautifully

Had this in for over a year
Use it a 4 station control for my lawn
Very happy

J
Joe
Absolute crap

Had it for less than a year and for some unknown reason it won't turn on automatically and even on manual I have to press start button several times for it to run.

Hi Joe, we're sorry that your BX4 is not working. If your tap timer is outside during Winter, this can affect its longevity. In really cold climates, we suggest that you remove the battery and make sure there is no water left inside the tap timer. If you live in an area that gets frost, we recommend taking off the tap timer completely and storing it away in the meantime for the longevity of the product. Thank you.

T
Tom Hunwicks (Brisbane, Australia)
Second unit to fail within 6 months

This is my second unit within 6 months, both have done the same thing. At first I thought it was flat batteries so I have replaced them, and still absolutely no power to the device and this second device is less than 2 months old. Water has made its way in on both devices through to where the batteries are stored, don't know if that's the issue, but this one will be going back as well and I will not be buying another.

K
Kevin Patterson (Hobart, Australia)
Very Good Product

Bought the BX4 to replace an older manual Holman 4 outlet timer tap. Works really well and easy to program especially when times need to be adjusted for daylight savings and water rationing. Can just stand on my front deck and reprogram without having to fight through the garden to do it. Would recommend.

L
Lindsay Wood (Perth, Australia)
BX4 Rubbish !

I have had 2 of these in the last 18 months, they don't last through one summer.

The fitting that connect to the Tap break off and the internals end up giving up the ghost after 6 or so months.

I should have known better after experiancing the several BX1's I purchased.

Hi Lindsay,
Thank you for contacting us. We're sorry to hear your BX4 Tap Timers have not performed as expected—this is not the quality we expect from our products. To better understand the specific issues you have encountered and provide appropriate assistance, we kindly request that you reach out to our customer service team. In addition, our customer service team can assess if your tap timers are still under warranty replacement. This can be emailed through the contact page on the website or at support@holmanindustries.com.au.
We look forward to helping soon.

Kimberly,
Holman Team

BX4 4 Outlet Bluetooth Tap Timer

Take full control of your garden watering and lighting with a Bluetooth® connection and a tap of your iPhone or Android. Our BX4 4x Outlet Tap Timer is built for the iGardener™ smartphone app!

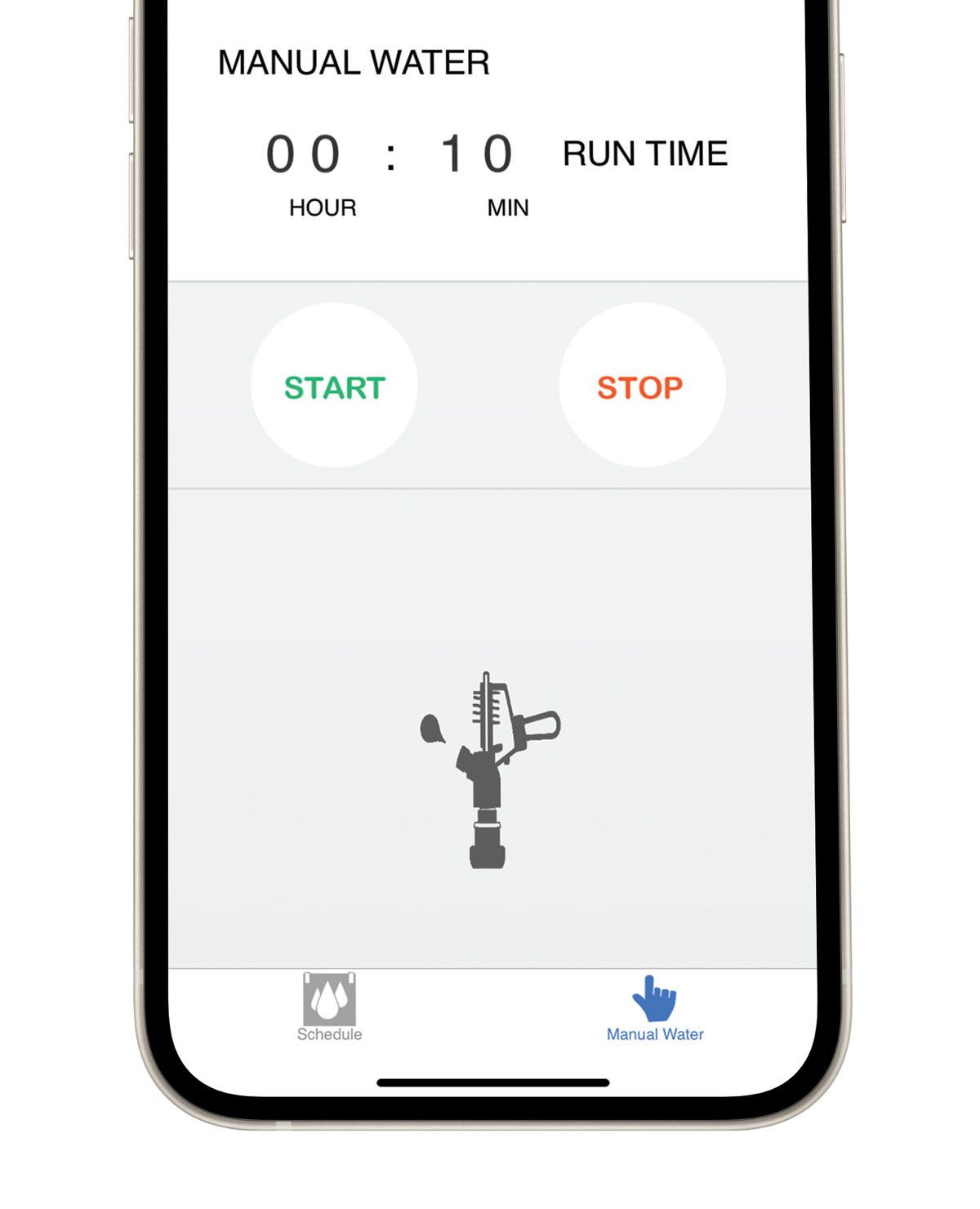

iGardener-watering-devices-cropped

Water restriction friendly with multiple day selection options

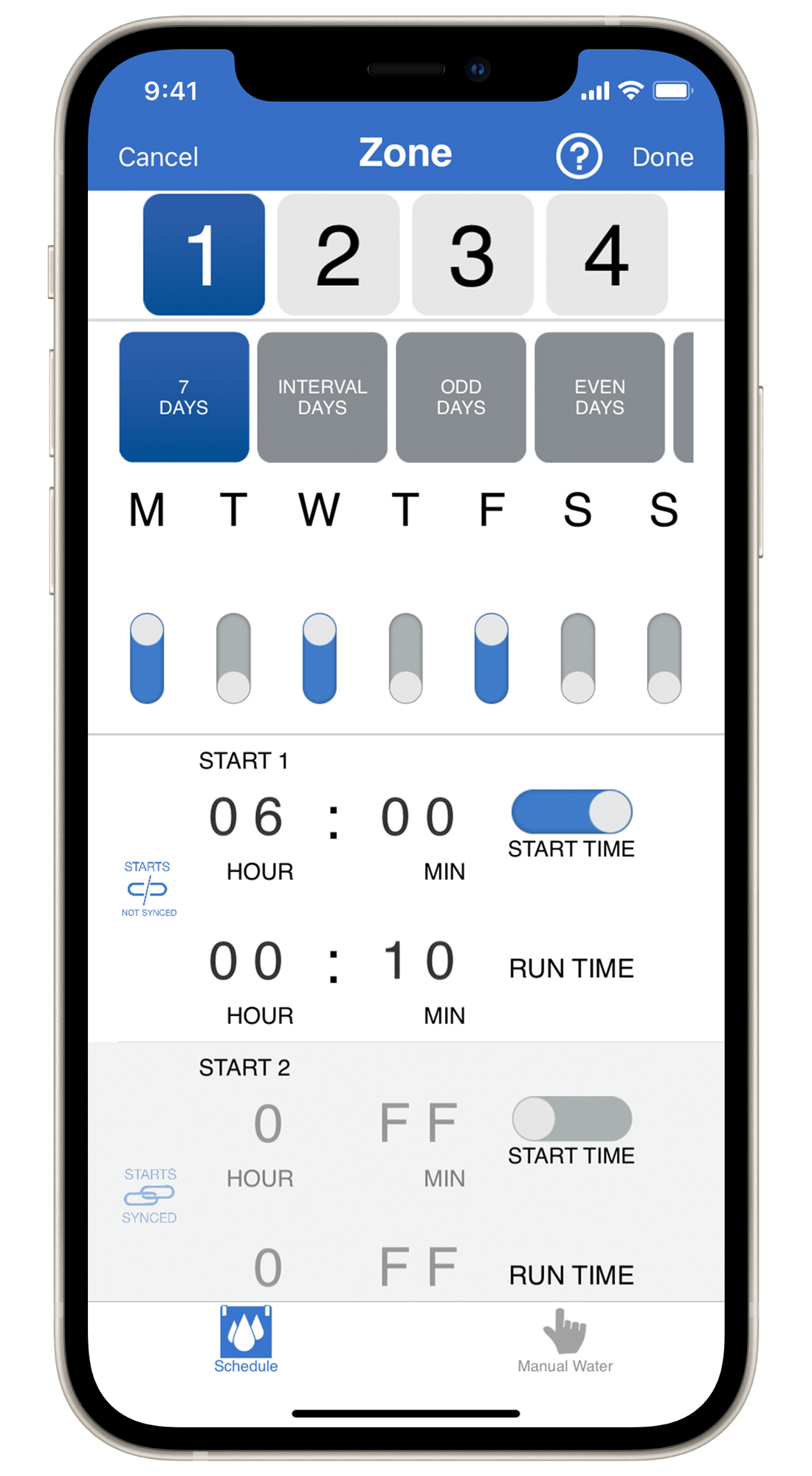

BX4 Zone Scheduling iGardener

Connect and manage devices from your smartphone

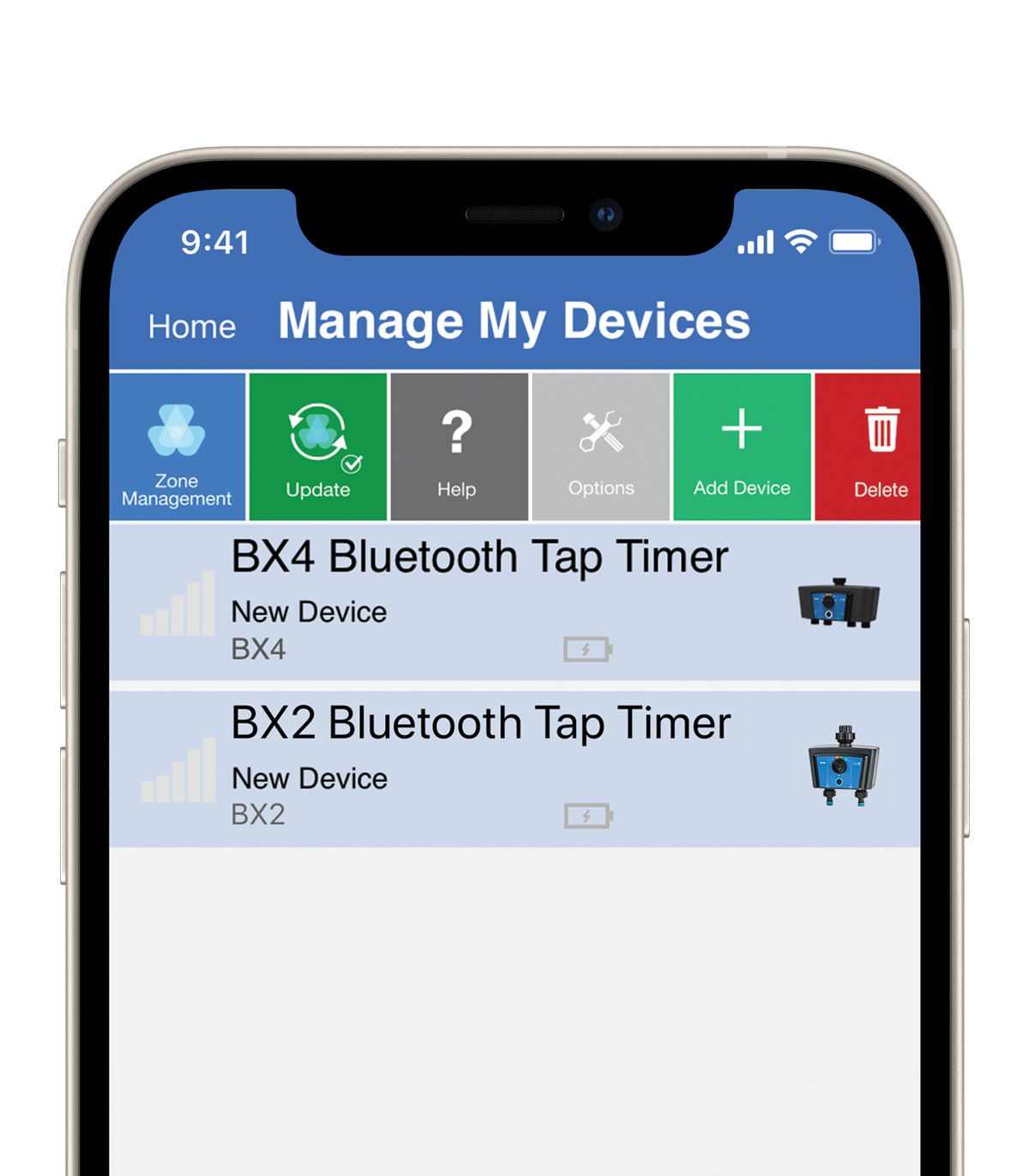

iGardener watering devices cropped bx4

Package Includes:

  • 1x BX4 4x Outlet Bluetooth Tap Timer
  • 1x 20/25mm tap adaptor
  • 4x 12mm snap-on hose fittings

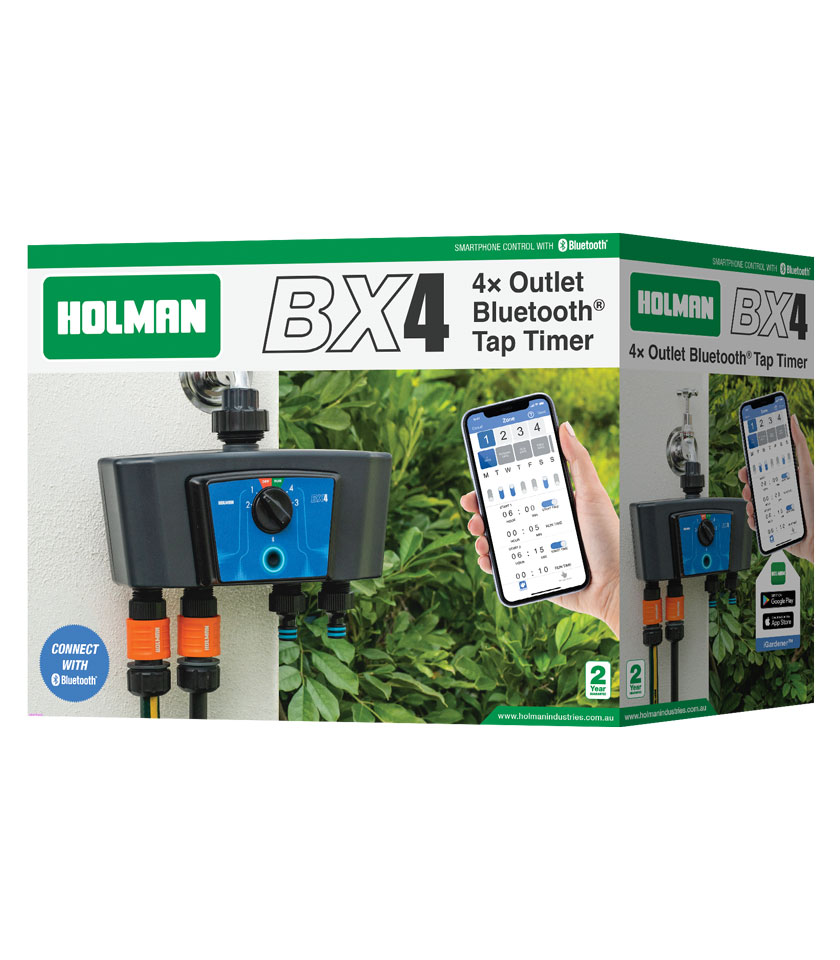

BX4 4 Outlet Bluetooth Tap Timer Packaging Cutout

Tech Specs:

  • BX4 requires 4x AA Batteries
  • 30-1200kPa operating pressure
  • 3ºC MIN working temperature
  • 20m range from Tap Timer to smartphone (connects to one device only)

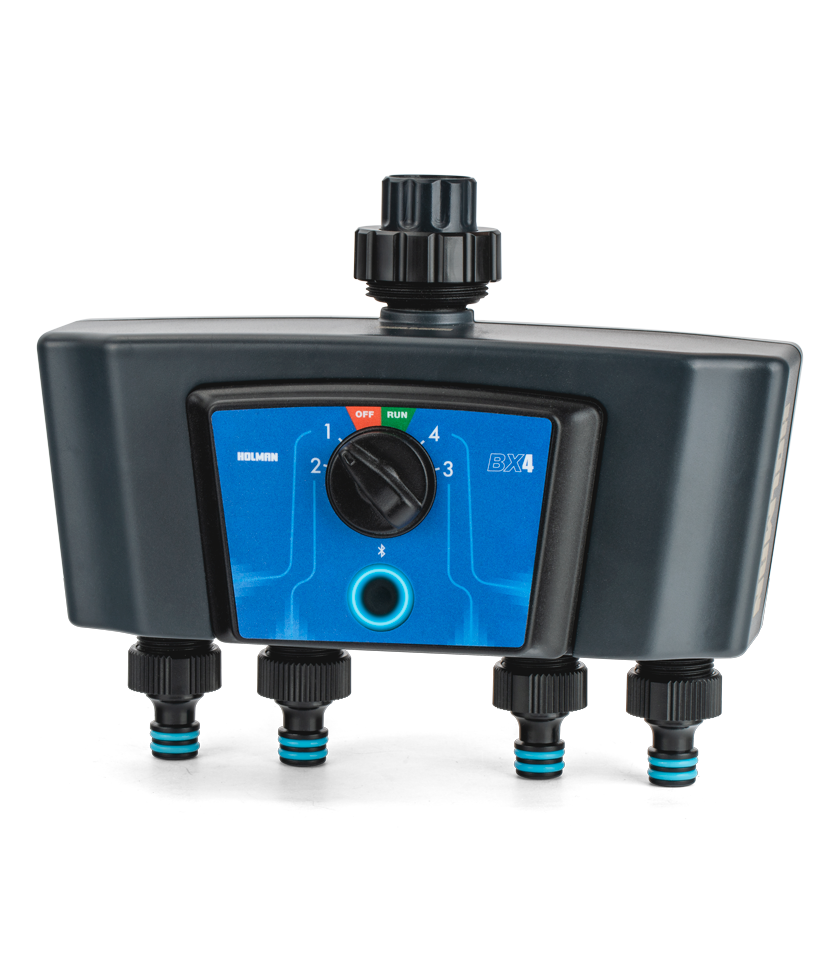

BX4 4 Outlet Bluetooth Tap Timer
