BX1 Bluetooth® Tap Timer

Our new BX1 Bluetooth® Tap Timer delivers watering to your fingertips. The single outlet is water restriction friendly and allows you to make adjustments from the comfort of your own mobile. Easily choose from different watering durations, flexible scheduling and interval watering, all from the iGardener™ App.

  • Water restriction friendly with flexible scheduling, 7-day, interval and more
  • Bluetooth® control with iGardener™, available on the App Store and Google Play
  • 20m range from Tap Timer to smartphone (connects to one device only)
  • Manual ON/OFF button on Tap Timer
  • 3 start times
  • Long watering times from 1 minute, to 23 hours 59 minutes
  • Misting control with spray intervals down to the second
  • 2 Year Warranty
  • Do not use in freezing conditions
  • 3° min working temperature

iGardener Smartphone App

For FAQ and support, please visit our help centre

Outlets: 1
  • CO3111 BX1 Bluetooth Tap Timer
  • CO3112 BX2 Dual Outlet Bluetooth Tap Timer
  • BX4 4 Outlet Bluetooth Tap Timer
Available at Bunnings
SKUCO3111 Categories, Tag
Barcode: 9319841519697
Close
Specifications

Specifications

MaterialPlastic
Colour (Tap Timer)Grey
Weight0.468kg
Water RatingIP54
Water Pressure30kPa – 1200kPa
Water Flow1L/min – 35L/min
CordlessYes
WirelessYes
Auto Shut OffYes
Battery Back-UpYes
Digital DisplayNo
Hose-End CompatibleYes
Manual BypassYes
Maximum Cycle Time (min)1439
Number of Cycles3
Number of Zones1
Odd/Even Day ProgramYes
Water restriction friendlyYes
ProgrammableYes
Range from Tap Timer to mobile20m
Batteries Required4 x AA
Close
Manual

Manual

Download Manual

LED patternMeaning
Red/Blue alternate flashStart up pattern (recognition of batteries/power)
Blue flash 3 timesStart up complete
Quickly flashing blue (10 times)Updated over Bluetooth
Single blue flashResponse to pressing button – manual on or off
Blue flash 0.5 seconds on, 20 seconds offWatering
Purple (pink) flash on start upStart up error – press Bluetooth button (start/stop) to clear
Purple (pink) solid lightError – reset device to clear
Red light on start up
Red flash 0.5 seconds on, 15 seconds off
Low battery warning – timer is not able to operate normally in this mode. Replace batteries.
Red Flash 3 timesStart button pressed when dial is in ‘OFF’ position
Start button pressed when timer is in low battery mode

Resetting the BX Tap Timers:
Before a hard reset, we recommend that the timer is removed from the iGardener app – use the ‘bin’ icon at the top of the page to remove the highlighted tap timer prior to reset –

BX1 hard reset – remove battery compartment for 2min, press and hold button as you push the compartment back in, device will flash blue quickly, let go of button. Add timer back into iGardener.

BX2 hard reset – move dial to ‘OFF’, press and hold the button, watch for 3 quick red flashes, let go of button. Add timer back into iGardener.

BX4 hard reset – move dial to ‘OFF’ press and hold the button, watch for 3 quick red flashes, continue to hold for 6 seconds, 3 more red flashes will occur, let go of button. Add timer back into iGardener.

Close
Scheduling Options

Scheduling Options

  • 7 Day – allows manual settings for each individual day
  • Interval Days – watering will occur every few days, as set by the user. Ideal for homes with automated watering restrictions.
  • Odd Days – watering will occur on the odd days of the month, with the option to skip the 31st of the month. Ideal for homes with automated watering restrictions.
  • Even Day – watering will occur on the even days of the month. Ideal for homes with automated watering restrictions.
  • Cycle – watering schedule will observe an allocated delay time and water for the allocated run time on selected days. Ideal for misting systems, GreenWalls and greenhouses.
Close
Videos

Videos

Preparing tap timers for winter

  • Be sure you check with your local water authorities for any sprinkler bans
  • We recommend either reducing the watering time or turning it off completely
  • In really cold climates, we suggest that you remove the battery and make sure there is no water left inside the tap timer
  • If you live in an area that gets frost, we recommend taking off the tap timer completely and storing it away for the meantime
Close
Reviews

Customer Reviews

Based on 4 reviews
25%
(1)
25%
(1)
0%
(0)
0%
(0)
50%
(2)
A
Andrew Stubbings (Melbourne, Australia)
Pretty Happy

Have been pretty happy with these timers.
Have not found any fault with them.

S
S.B. (Sydney, Australia)
Great

Gave used for 8 months now, love having a battery indicator, huge flexibility in timing schedules and manual run time. Haven't had a problem with them so far

M
Mike (Perth, Australia)
Software and manuals are just crap

Still trying to get this thing to actually work (without success)

A
A.S. (Perth, Australia)
Timer lost connection, runs water until manual valve closure.

Recurring issue where the the timer seems to froze and lost bluetooth connectivity, resulting in the tap being left open. The only way for the timer to be responsive again is to open and reinsert the battery cartridge. This had happened a few times now. This timer cannot be trusted as a left-alone timer. Probably useful if you are at home and always keeps an eye on it.

Extremely extremely frustrating as water has been wasted.

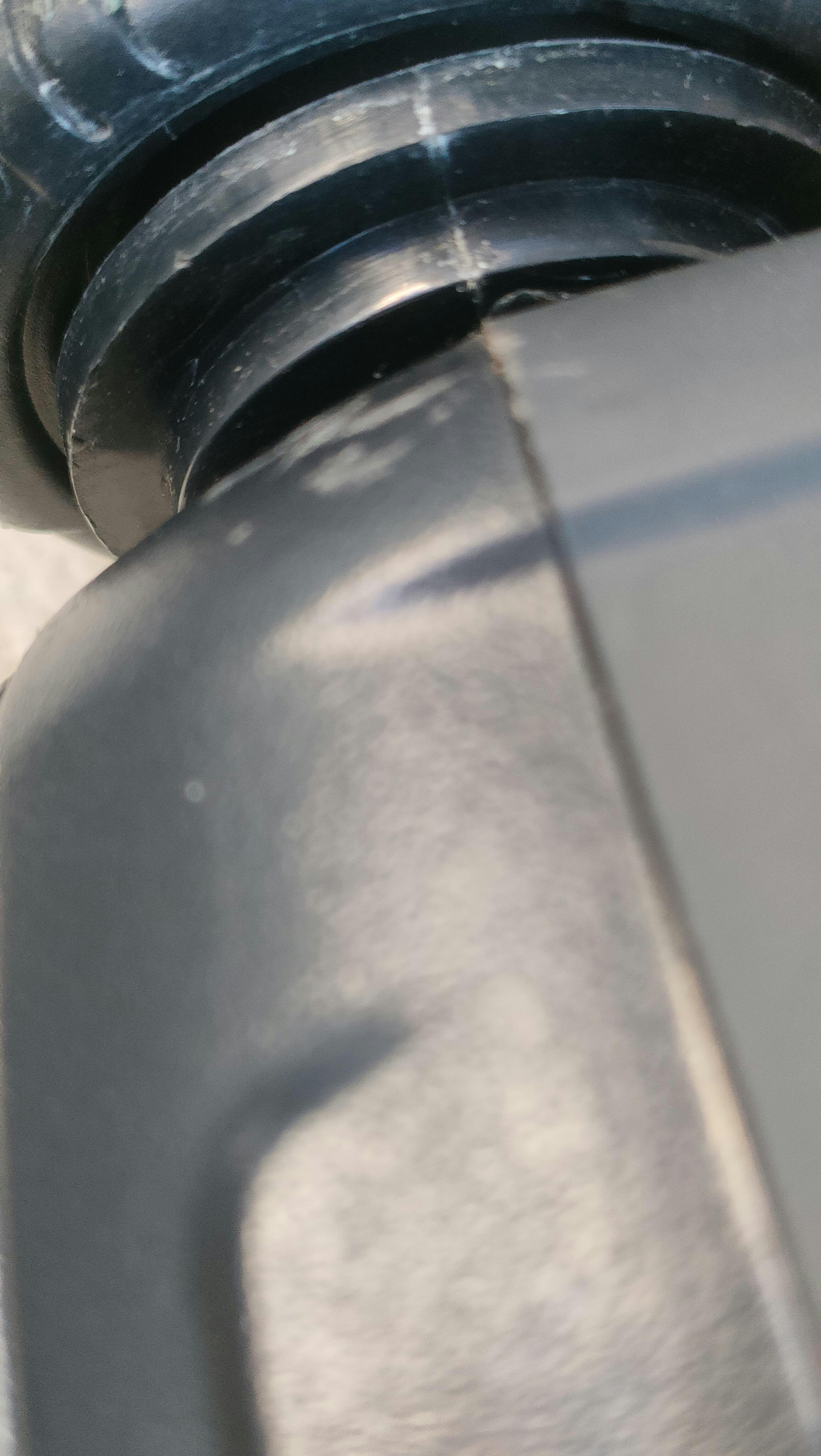

And also, opening the battery cartridge means having to unscrew the pipe as it is a stupid design - see photos.

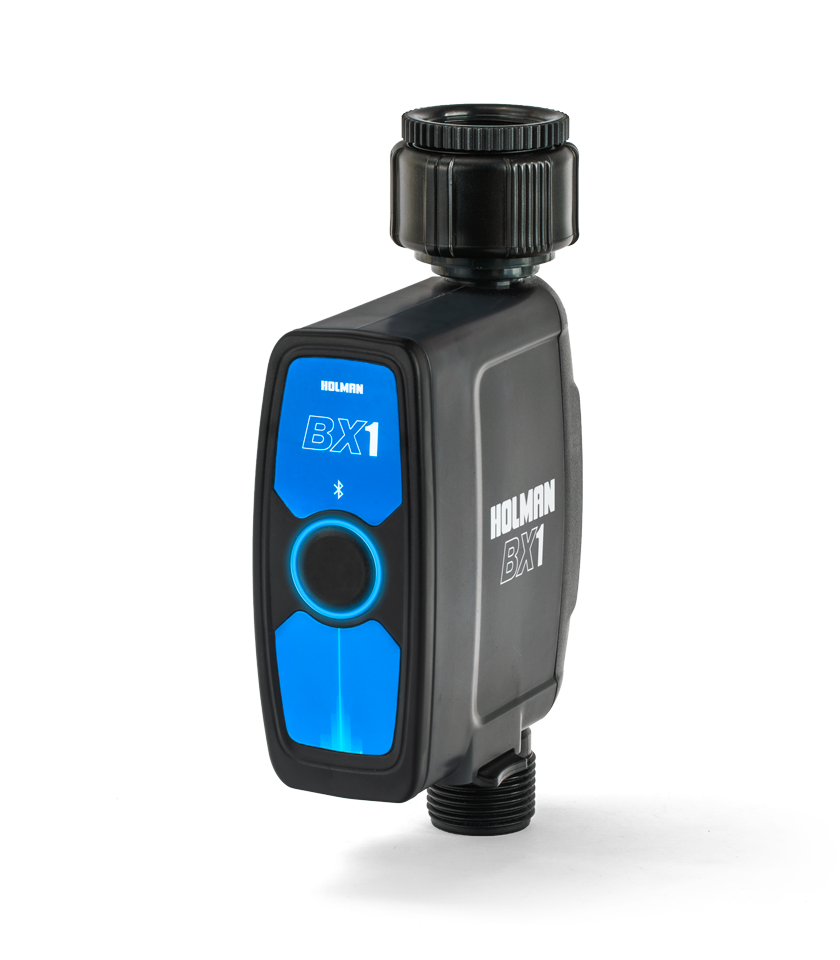

CO3111 BX1 Bluetooth Tap Timer

Take full control of your garden watering and lighting with a Bluetooth® connection and a tap of your iPhone or Android. Our BX1 Tap Timer is built for the iGardener™ smartphone app!

iGardener-watering-manual-BX1

Water restriction friendly with multiple day selection options

iGardener-watering-schedule-BX1

Connect and manage
devices from your smartphone

iGardener-watering-devices-BX1

Package Includes:

  • 1x BX1 Bluetooth Tap Timer
  • 1x 20/25mm Tap Fitting
CO3111 BX1 Bluetooth Tap Timer Packaging

Tech Specs:

  • BX1 requires 4x AA Batteries
  • 30-1200kPa operating pressure
  • 3ºC MIN working temperature
  • 20/25mm Tap Fitting
  • 20m range from Tap Timer to smartphone (connects to one device only)
CO3111 BX1 Bluetooth Tap Timer

Take control
with iOS and  Android
