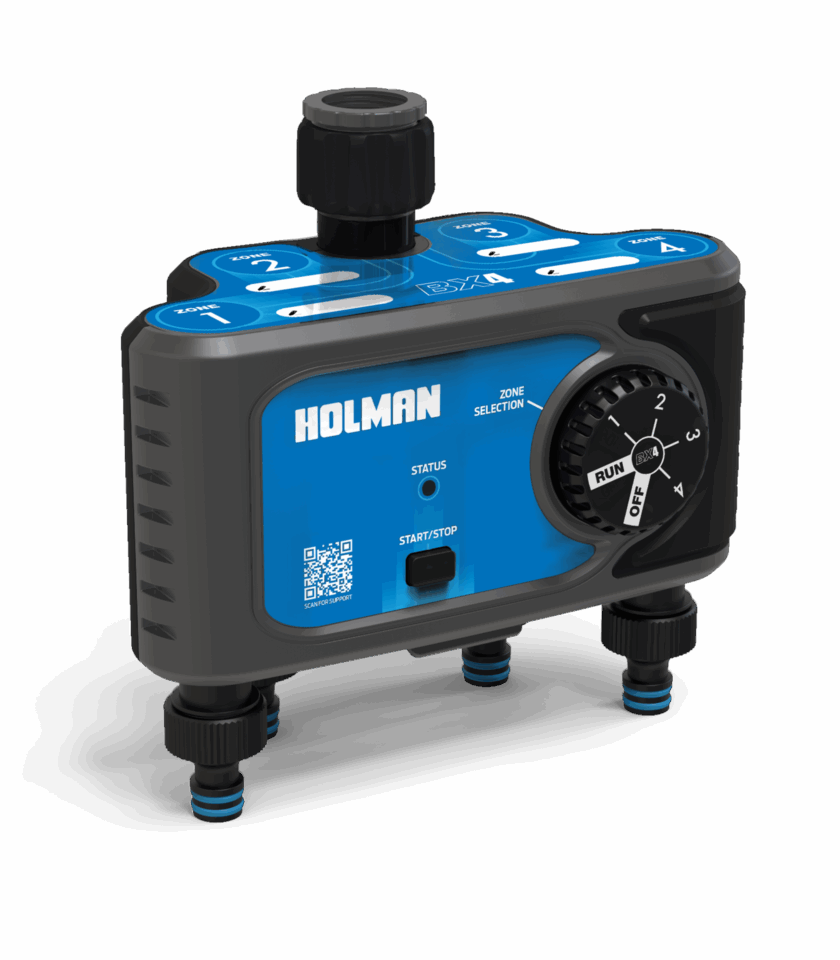

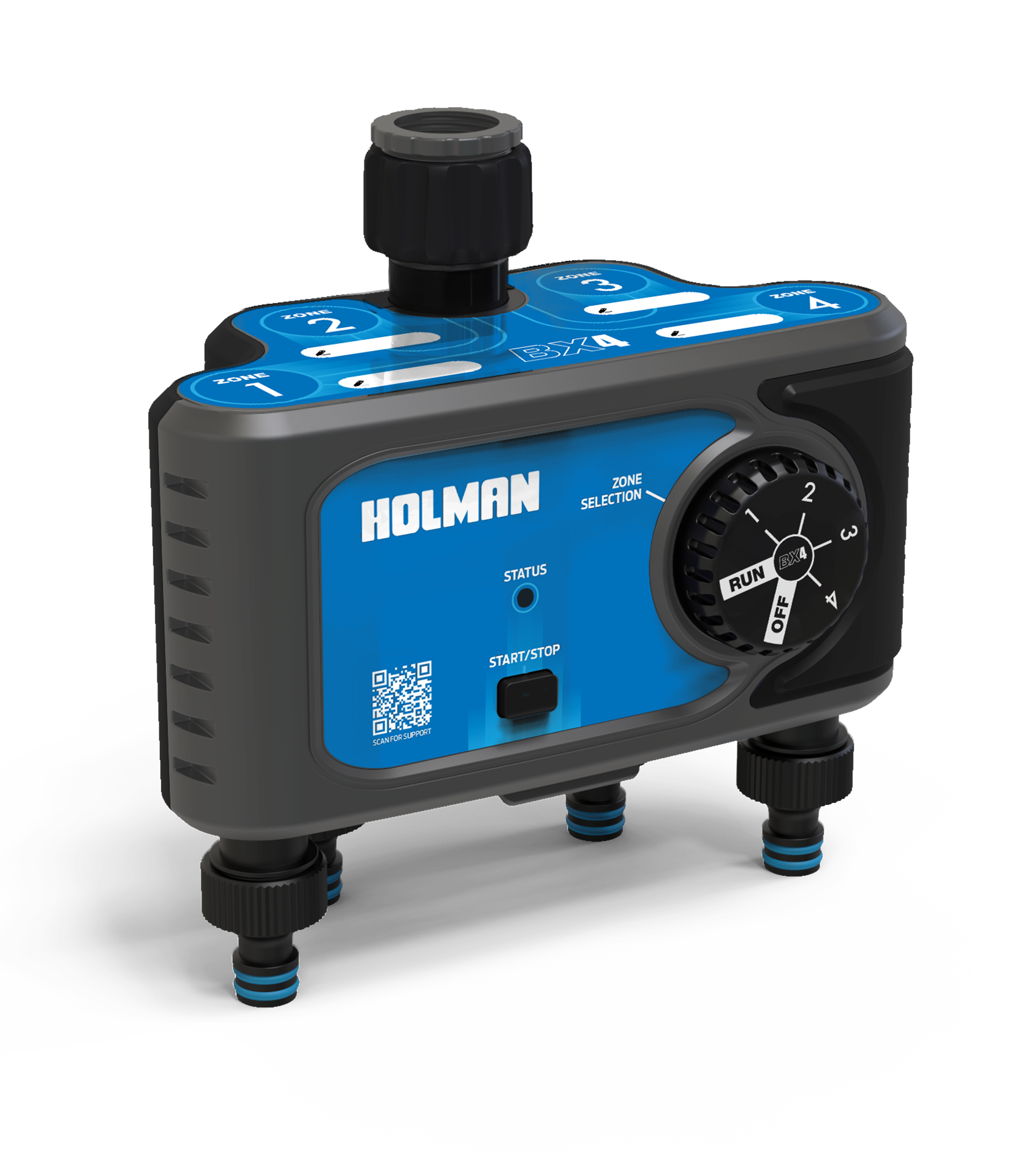

BX4 4x Outlet Bluetooth® Tap Timer

COMING SOON

The new BX4 4x Outlet Bluetooth® Tap Timer controls watering for your medium to large sized garden. The 4x outlet is water restriction friendly and allows you to make adjustments from the comfort of your own mobile. Easily choose from different watering durations, flexible scheduling and interval watering, all from the iGardener™ App.

Water restriction friendly with flexible scheduling, 7-day, interval and more
Bluetooth^® control with iGardener™, available on the App Store and Google Play
20m range from Tap Timer to smartphone (connects to one device only)
Wall mount bracket and fittings included to secure your tap timer
Manual ON/OFF button on Tap Timer
Long watering times from 1 minute, to 23 hours 59 minutes
Misting control with spray intervals down to the second
2 Year Warranty

Looking for the superseded BX4 MK1 model, product code CO3114? CLICK HERE

For FAQ and support, please visit our help centre

Add to WishlistRemove from Wishlist

SKUCO3314 CategoriesBBS, Tap Timers TagBluetooth

Specifications

Material	Plastic
Colour (Tap Timer)	Grey
Weight	0.819kg
Water Rating	IP54
Water Pressure	50kPa – 800kPa
Max Flow Rate	25L/min
Cordless	Yes
Wireless	Yes
Auto Shut Off	Yes
Battery Back-Up	Yes
Digital Display	No
Hose-End Compatible	Yes
Manual Bypass	Yes
Maximum Cycle Time	23hr 59min
Number of Cycles	3
Number of Zones	4
Odd/Even Day Program	Yes
Water restriction friendly	Yes
Programmable	Yes
Range from Tap Timer to mobile	20m
Batteries Required	4 x AA

Manual

View BX4 Manual

LED pattern	Meaning
Red/Blue alternate flash	Start up pattern (recognition of batteries/power)
Blue flash 3 times	Start up complete
Quickly flashing blue (10 times)	Updated over Bluetooth
Single blue flash	Response to pressing button – manual on or off
Blue flash 0.5 seconds on, 20 seconds off	Watering
Red light on start up Red flash 0.5 seconds on, 15 seconds off	Low battery warning – timer is not able to operate normally in this mode. Replace batteries.
Red Flash 3 times	Watering terminated – *START/STOP* button pressed or dial moved while watering Start button pressed when dial is in ‘OFF’ position Start button pressed when timer is in low battery mode

Scheduling Options

7 Day – allows manual settings for each individual day
Interval Days – watering will occur every few days, as set by the user. Ideal for homes with automated watering restrictions.
Odd Days – watering will occur on the odd days of the month, with the option to skip the 31st of the month. Ideal for homes with automated watering restrictions.
Even Day – watering will occur on the even days of the month. Ideal for homes with automated watering restrictions.
Cycle – watering schedule will observe an allocated delay time and water for the allocated run time on selected days. Ideal for misting systems, GreenWalls and greenhouses.

Reviews

works with

BX4 4x Outlet Bluetooth^®
Tap Timer

Take full control of your garden watering and lighting with a Bluetooth® connection and a tap of your iPhone or Android. Our BX4 4x Outlet Tap Timer is built for the iGardener™ smartphone app!

Features
