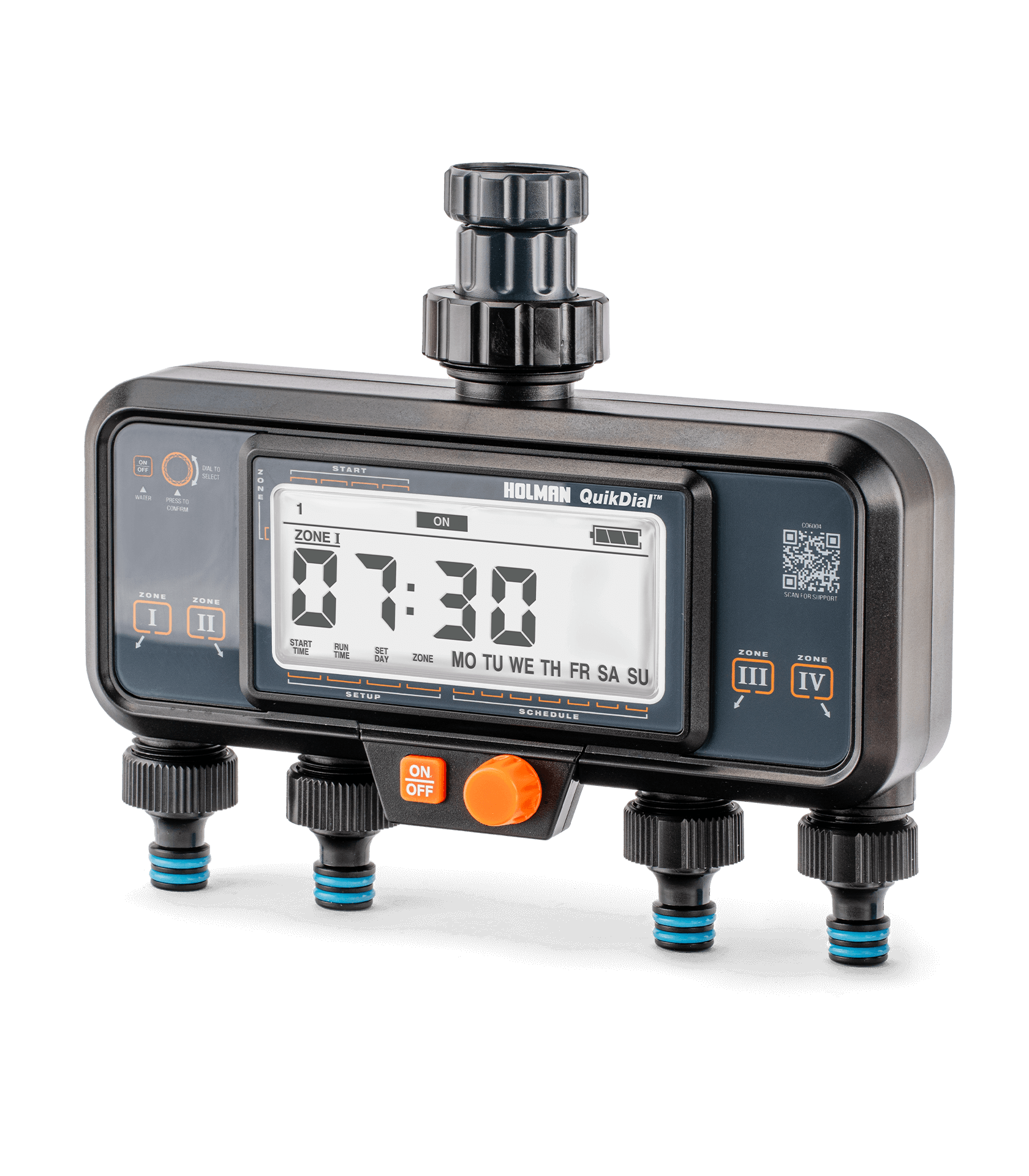

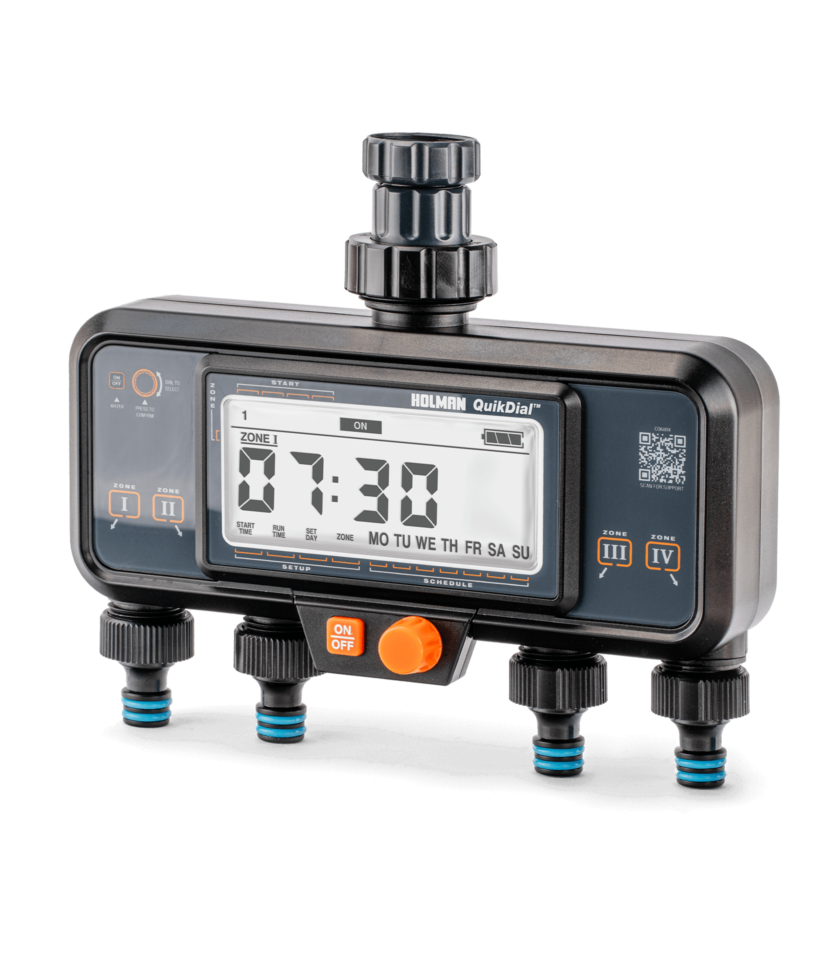

QuikDial™ 4x Outlet Tap Timer

All new 2023 QuikDial with new programming and features has arrived!
Upgrade your home watering with the Holman QuikDial™ 4x Outlet Tap Timer. The four-outlet model allows for quick and easy scheduling of four different zones from a single garden tap. With 4x starts available you can easily program different watering schedules which can be applied to any of the outlets. Include more than one outlet to a start and they will each water sequentially!

  • Simple quick dials
  • Large LCD Screen
  • Turn one garden tap into four
  • 4 unique Starts (watering schedules which can include any of the outlets)
  • 7-day calendar selection
  • Watering times of 1-99mins
  • Max flow rate of 25L/min
  • Manual and automatic watering
  • Do not use in freezing conditions
  • 3° min working temperature

Outlets: 4
  • CO6002-DSC04636-QuikDial-Dual-Outlet-cutout

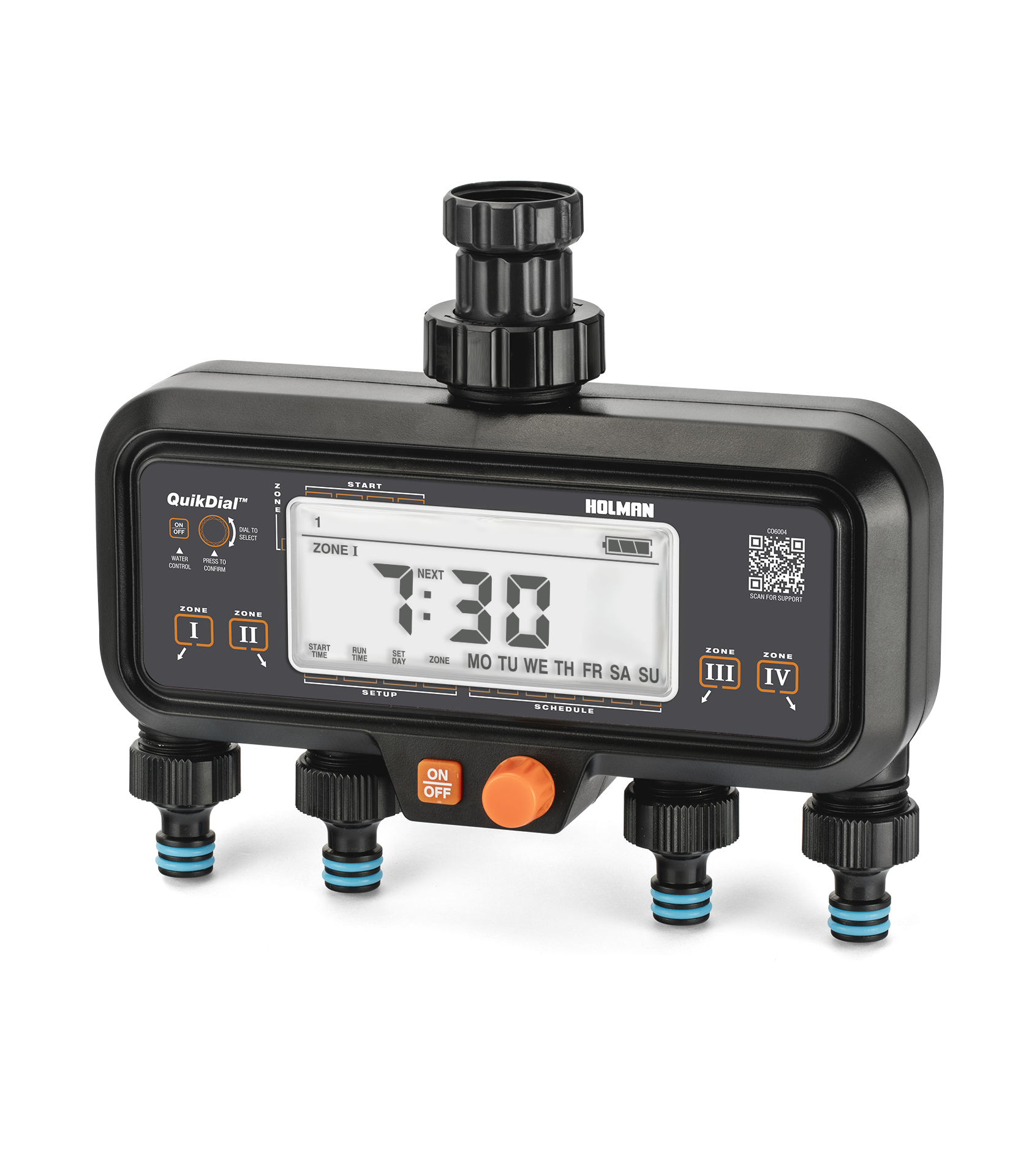

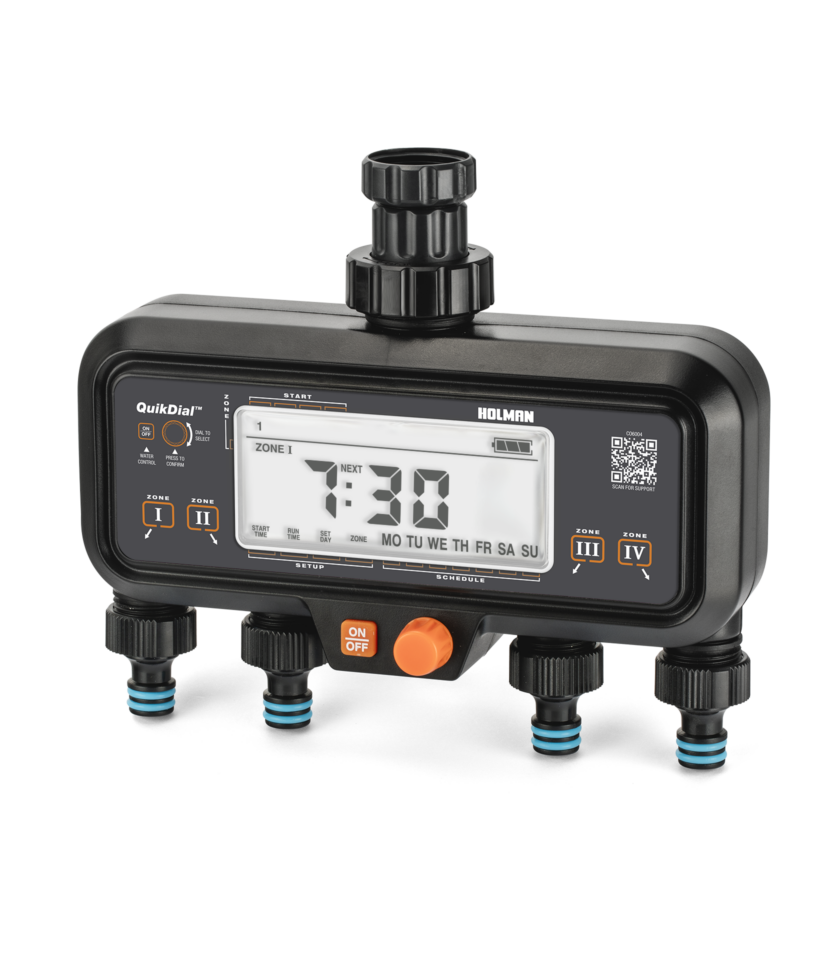

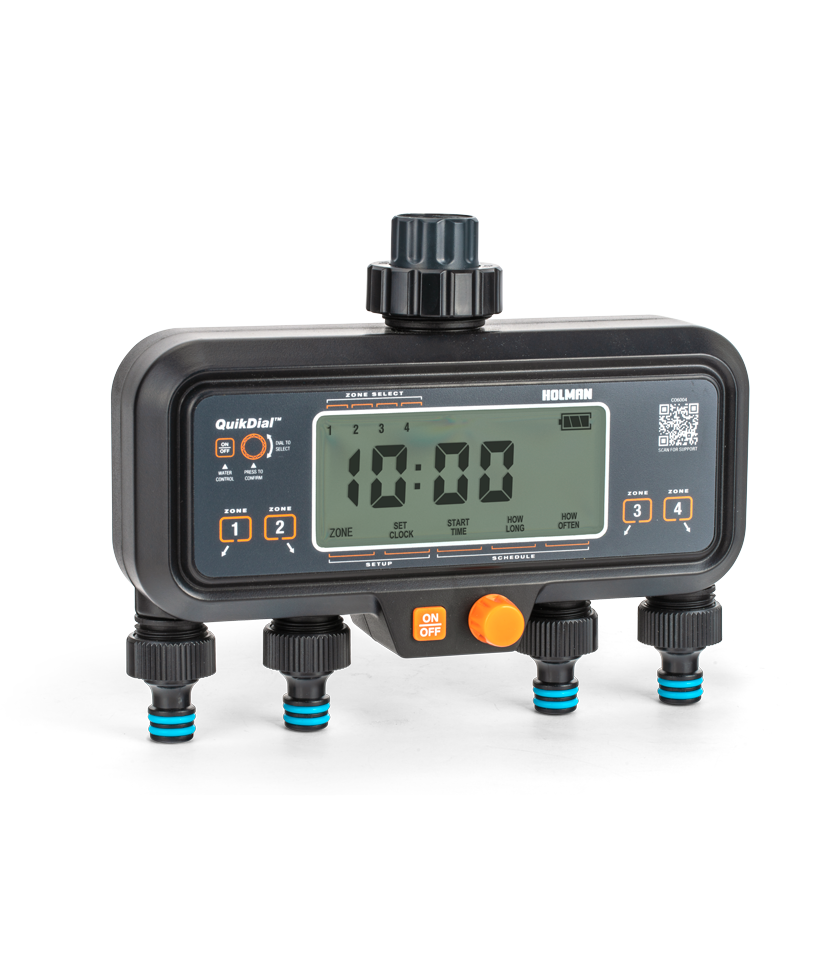

  • CO6004-DSC04638-Quikdial-Four-Outlet-Cutout
Available at Bunnings
SKUCO6004 Categories,
Barcode: 9319841521126
Additional information
Weight.686 kg
Dimensions227 × 55 × 125 mm


Colour (Tap Timer)Grey
Water Pressure30kPa – 1200kPa
Water Flow25L/min
Auto Shut OffYes
Battery Back-UpYes
Digital DisplayYes
Hose-End CompatibleYes
Manual BypassYes
Maximum Cycle Time (min)30
Number of Zones4
Start Times1
Run Times1
Odd/Even Day ProgramNo
Batteries Required2 x AA


What is ‘no watering’ mode and how can I toggle it on and off?

The ‘no watering’ mode on your QuikDial Tap Timer stops any automated programs you have in place, while still allowing manual programming of the Tap Timer. This can be beneficial in the winter months to save on water usage.


Toggle ON/OFF

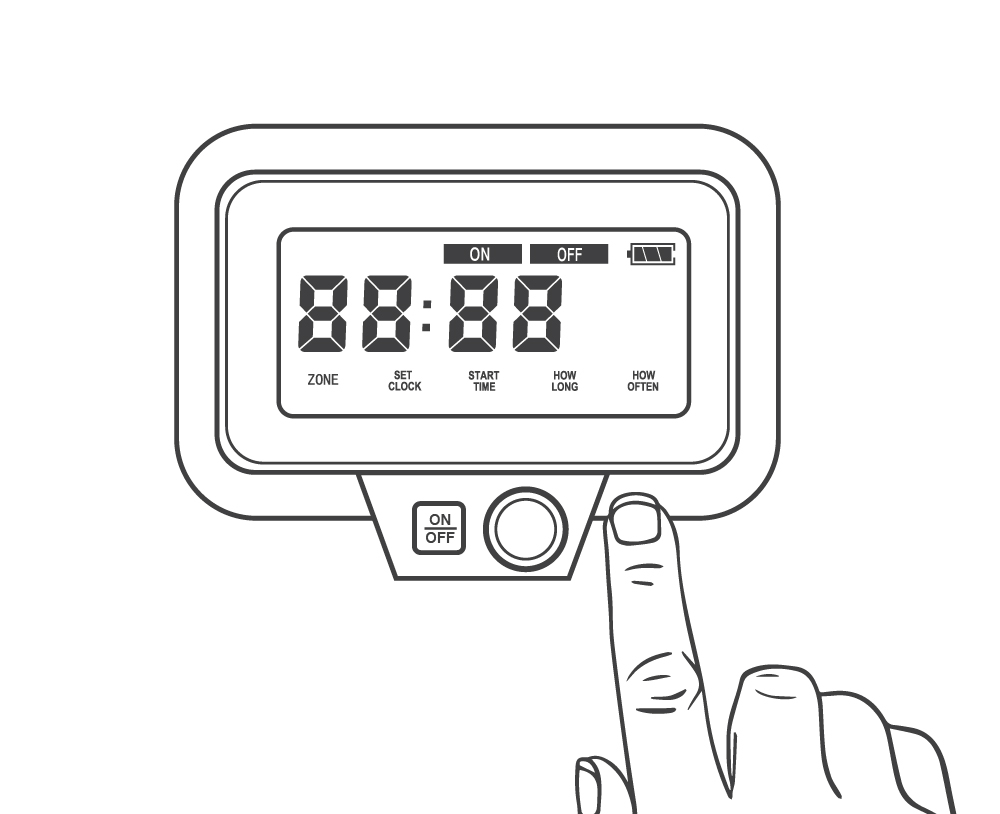

  • Press the main dial down for three seconds
  • The ‘no watering’ icon will appear and stop your automated watering programs
  • When you want to turn it back on, press the main dial down for three seconds
  • The ‘no watering’ icon will disappear, and your automated watering programming will continue

View all FAQ’s Here



Preparing tap timers for winter

  • Be sure you check with your local water authorities for any sprinkler bans
  • We recommend either reducing the watering time or turning it off completely
  • In really cold climates, we suggest that you remove the battery and make sure there is no water left inside the tap timer
  • If you live in an area that gets frost, we recommend taking off the tap timer completely and storing it away for the meantime

Customer Reviews

Based on 18 reviews
Luke McManus (Ocean Grove, Australia)
Wish I’d read these reviews before buying

Terrible manual, terrible timer. Manual one station wont work. If I need to replace the batteries I loose all the programs I’ve entered. I’m chucking it in the bin, accepting that I’ve done my money and reading the reviews carefully before purchasing again.

P.D. (Mount Barker, Australia)
It's a shocker

I've written instruction manuals in the past and the instruction booklet with this fails to meet the standard. Took it back to Bunnings to get them to help set it up and they found it difficult and when I attached it to the watering system only 2 of the 3 outlets which were supposedly set up worked and one didn't turn off. What a waste of money!!!

Uldis Rudevics (Adelaide, Australia)
Great timer at a good price

Excellent and versatile device. You need to spend some time to study how to set it up, but once done works perfectly

Rubbish Instructions

Have tried to program this before setting it up at customers and can't set up more than 1 station as instructions are terrible.

Raised a complaint with Bunnings as I am a tradie and they shouldn't be selling this stuff. I can set most timers without looking at a manual but this is crap

DVN (Perth, Australia)

I have the order 2023 model. Way too complex to setup bad layout of controls.

Anne-Marie Nash (Brisbane, Australia)
Worst user guide ever

The unit works. but worst set up manual I ever seen , throw it away and start pushing buttons and work it out myself

T.P. (Perth, Australia)
Good luck getting it to work

I have used tap timers in the past that have been super easy to set. This unit is a nightmare. The instructions don't make sense and if you do go onto the website for FAQs the link doesn't work either. Don't bother. Buy something else.

Kevin Victor (Perth, Australia)
Quick Dial CO6004

Nothing quick about it and is absolutely useless and waste of money. I highly recommend you consider anything else but this unit.

D.C. (Melbourne, Australia)
No good

Just installed this system and I found that zone 4 cannot be switched off.

Alan (Kurrajong Heights, Australia)
Works Perfectly

Read the manual, easy setup, works perfectly. I now have 3 sequential watering lines in my vegy garden. A spare for the next bed. It is coordinated with the pump on my dam, which operates using wifi and electric timers. Perfect.
I have made a weatherproof cover the ensure it lasts outdoors.
So far so good.

Holman QuikDial Logo Grey

The QuikDial Tap Timers have a simple and intuitive setup system that is quickly completed in 5 steps.

Simply turn the dial and press to confirm your selection or press the ON/OFF for manual watering.

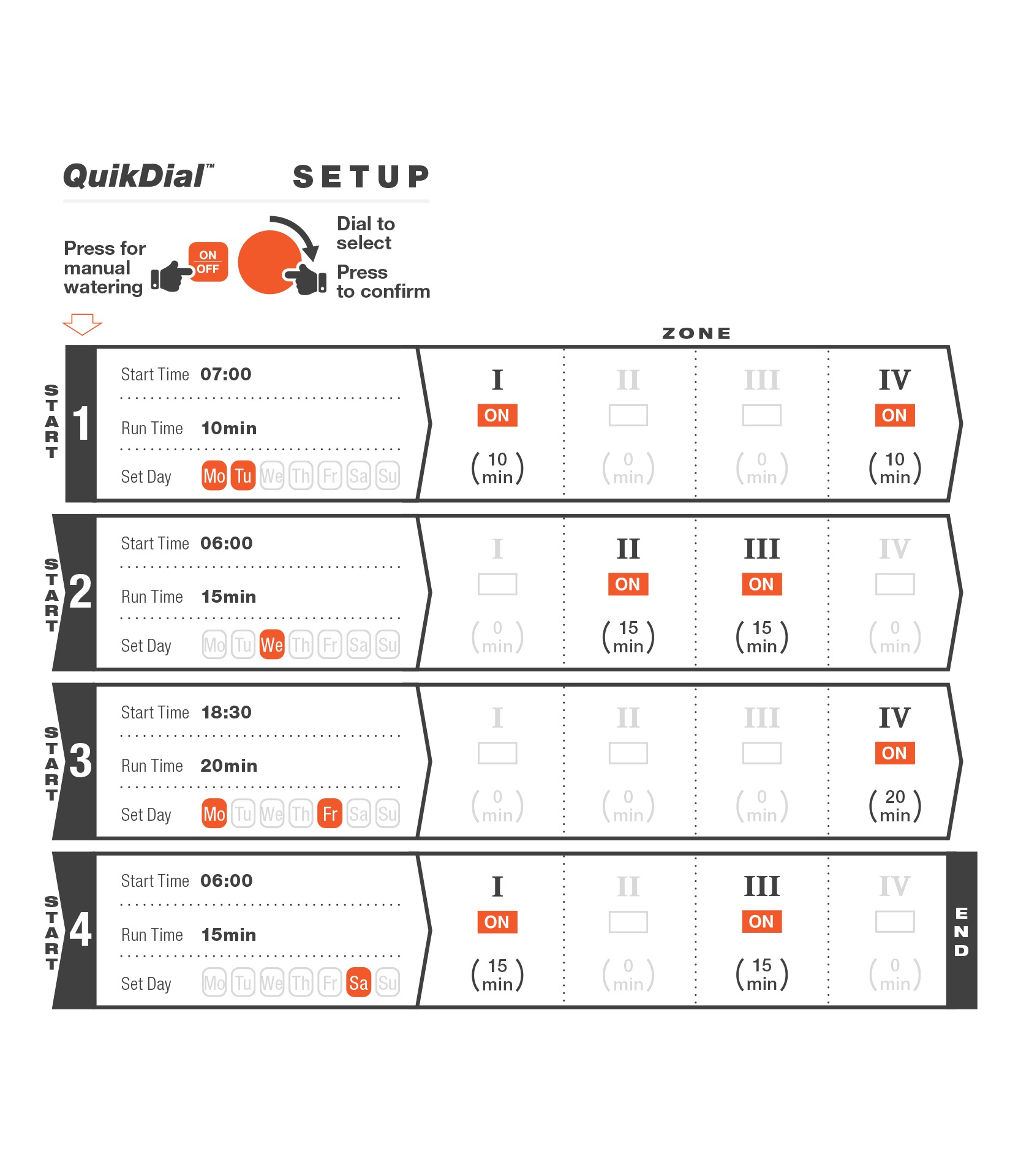

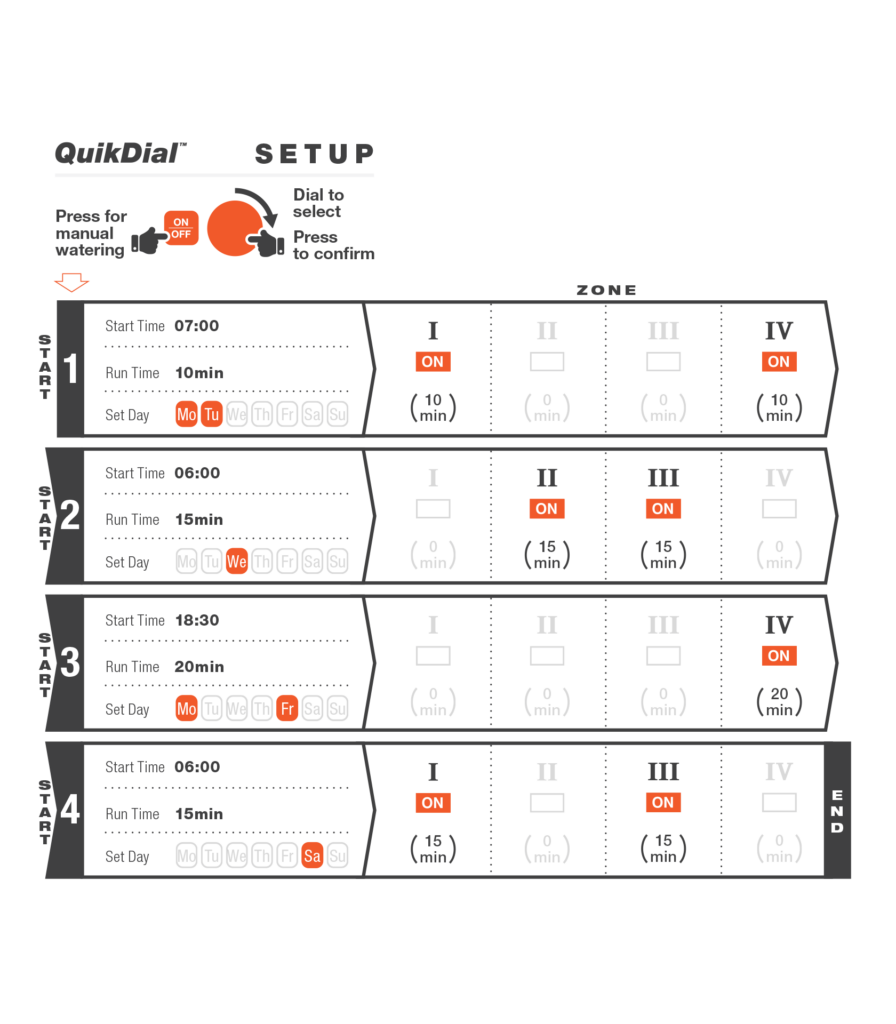

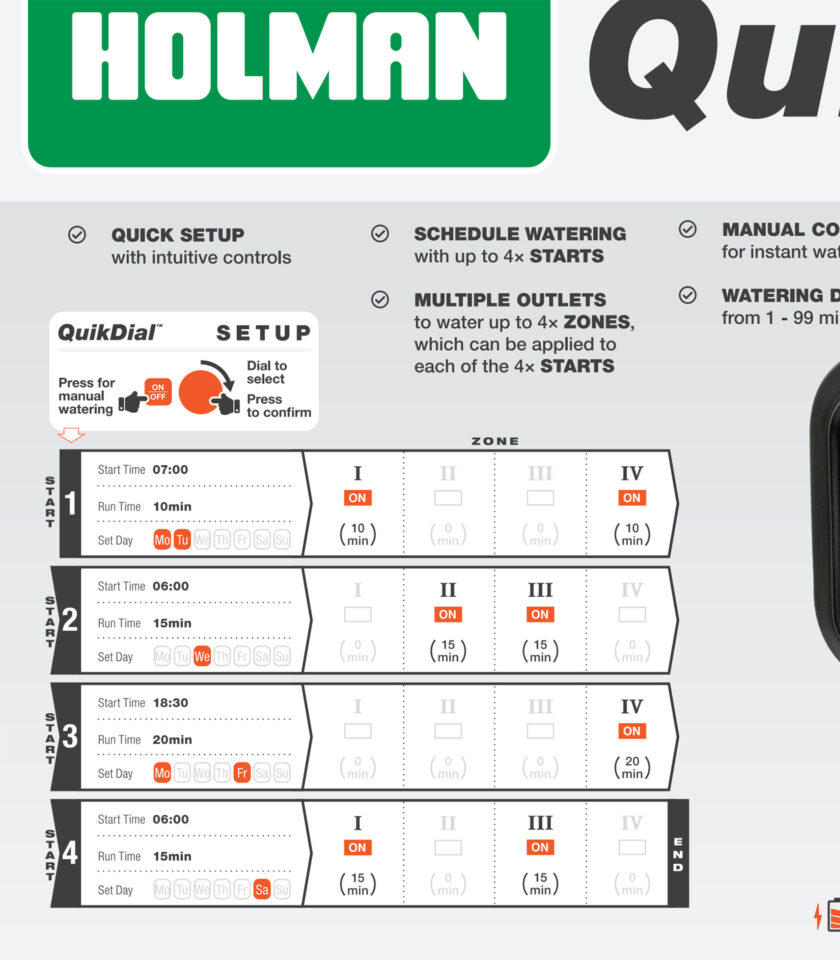

CO3004 Chart Guide 2023
CO6004 QuikDial 4 Outlet Tap Timer Packaging Cutout

Package Contents:

  • 1x QuikDial™ Dual Outlet Tap Timer
  • 1x 20mm/25mm BSP Tap Fitting
  • 1x Tap Connection Locking Nut
  • 4x 12mm Snap-on Hose Connector

Tech Specs:

  • Requires 2x AA alkaline batteries (not included)
  • Working pressure: 30-1200kpa
  • Flow rate: 25L/min
  • Working temp: 3º-5ºC
  • Zones: 4
