Aspect-WiFi-Analyst Weather Station
Aspect Wi-Fi Analyst Weather Station
Aspect Wi-Fi Analyst Weather Station
Aspect Wi-Fi Analyst Weather Station
Aspect Wi-Fi Analyst Video
Aspect-WiFi-Analyst Weather Station

Aspect Wi-Fi Analyst Weather Station

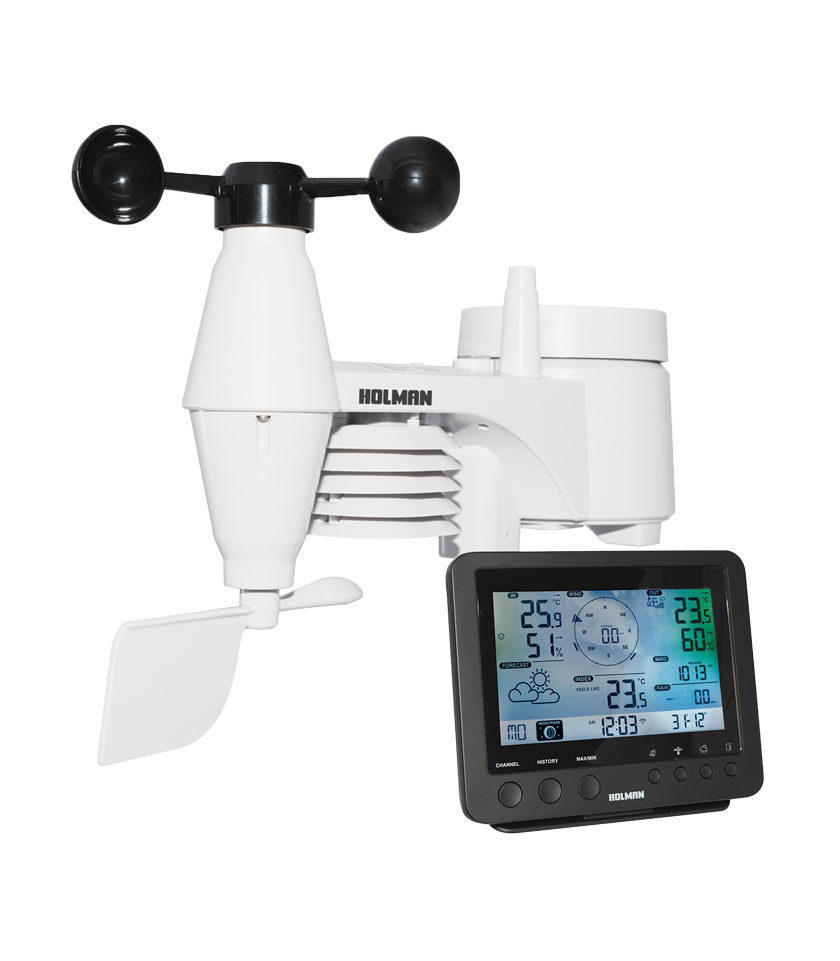

Weather Vane with Indoor Sensor and Display Panel

Get to know the weather, right in your backyard, no matter where you happen to be.

The Aspect Wi-Fi Analyst connects to the web through your home router, delivering 12 local weather data points to Weather Underground. So long as you have an internet connection, you can follow the weather in your backyard from anywhere on the globe.

WARNING – Keep new or used Button/Coin Batteries out of reach of children. The battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body.

Aspect Weather Station: Wi-Fi Analyst
  • WS5029 Aspect Wireless Data Centre Weather Station
  • Aspect-WiFi-Analyst Weather Station
Buy Online at Bunnings
SKUWS5070W Categories, Tags, ,
Barcode: 9319841517358
Additional information
Weight1.825 kg
Dimensions386 × 152 × 281 mm
Manual & Setup




Q: I am in South Australia and I am having trouble setting up the Time Zone

  • Set the time zone to +9.
  • Then set the clock manually through the screen to your time.
  • When you come to the SYNC option, turn this to OFF and the clock will not sync with the time server.
  • This will stop the auto update every 12 hours, putting the time out again.
  • Using the steps above, manually set for daylight savings time when required.

Customer Reviews

Based on 10 reviews
Malcolm Garth (Abbotsford, Australia)

I received the weather station as a gift in November last year and was pretty happy with it until mid-February. Now it's not working.

The rain gauge started playing up first. We had some pretty heavy duty storms recently and the gauge only measure a few mm of rain but our front yard and the whole town was flooded. A week later and we had no rain, no wind and lovely weather and the rain gauge was recording 44mm of rain that certainly didn't hit the ground.

Over the next few days the rest of the gauges stopped working and now we have nothing...

The other problem we've found is that the indoor terminal has zero LCD readability. The screen is on but even viewing it from different angles doesn't help.

I like the unit and the idea that you can look up your home weather from wherever you are. If it's a battery problem for the sending unit then they should last a lot longer than a couple of months.

JHB (Brisbane, Australia)
Very Poor Instructions

The instructions for this are extremely poor. It is not a step by step instruction. At the start the instructions say ensure that the unit is in AP mode. I had to read through numerous pages to find out what AP mode is and how to get there. Then the instructions say go to the advanced tab. After two hours of looking and reading and watching videos I still cannot find the advanced tab.
The outdoor unit will simply not connect to the control panel. i have reset both the control panel and the out unit. There is simply no connection.
Very frustration piece of equipment. It is very close to being binned.

Hi JHB, thank you for leaving your review and we are sorry to hear that you had trouble setting up your weather station. We will take on board your feedback and review the manual that we currently have for this weather station. If you need further assistance connecting to your control panel, please get in touch with our friendly customer service team and they will be able to help with the process. or 1300 716 188

Dale Borthwick (Brunswick East, Australia)
Great little unit

I received the union for my birthday. It was easy to set up and the nerd in me loves watching the readings. The only thing missing from this very smart unit is the UV reading and some pics of peoples installations (for some inspiration). Apart from that couldn’t be happier.

Rob w (Cessnock, Australia)
Good unit

Overall good product
Don’t like the fact that the rain gauge resets at midnight
Would like it to reset 9.00 am as per au standard
Other than that good product easy to read

Stephen Jarrett (Sydney, Australia)
Rock solid station

This station is well built and quite robust. The accuracy of the sensors is excellent and the setup was absolutely seamless in comparison to other weather stations I've had to deal with.

Love the online time sync.

My only gripe and it's so minor that it doesn't drag the review rating down is that the barometer only does 1 hPa resolution. It would have been nice for it to be in finer detail. Not so much on the console but a 0.1 hPa resolution for Wunderground output would be really nice at least.

Other than that awesome station.

IJK (Patterson Lakes, Australia)
Overall this is not a bad product but has a couple of annoying issues.

I have had this weather station for about 18 months and overall it does the job okay. I have two issues with the system. The first is to do with rainfall. Most of the time it gets rainfall right but when I get a very rainy day it tends to play up. Multiple times now it has suddenly jumped up by 60 to 70 mm which then distorts the days rainfall significantly. I certainly didn't get 60 mm of rain in 2 minutes or less when the device reported this on at least 4 or 5 occasions. The other small issue I have is that the device does not remember the Wi-Fi settings and every time the Wi-Fi router is turned off you have to reconnect the weather station. Every other device I have automatically reconnects, this just seems cheap and is annoying as the setup tacks a few minutes on the mobile phone each time and sometimes you forget to do it and only realise later that you are offline.
Other than these issues, the device is good and keeps track of our weather through Wunderground.

Thank you so much for leaving your review. A big jump in rainfall readings usually points to very strong wind or gusts that might shake the unit. The rain gauge works on a seesaw principle, so when the unit wobbles in the wind it is more likely to tip over the seesaw and record a reading. We will investigate the Wi-fi connection issue that you described.

Sophie Donnelly (Perth, Australia)
Weatherman Analyst

Well the weather analysts will tell us the when to water the plan and when not to

Paul Robinson (Sydney, Australia)
installed today, instructions confusing

Hi, I installed this today and it now seems to work okay, but the instructions are confusing. I followed the instructions step by step and oriented the sensor thingy to the North, as instructed, THEN the instructions told me I should've pointed it to the south instead in the southern hemisphere. Anyway I turned it around to point South, then one lot of instructions say if the latitude is negative it should be entered as positive since the thing was pointing South. BUT I'd already registered it online and there was no such instruction there. So I've left the online latitude as negative, but it's as confusing as anything. Another annoyance is the batteries in the sensor. When time comes to change those it'll be very awkward since the batteries will drop out while trying to insert them in the bottom chamber. This could've been better arranged to make field-change of flat batteries more convenient. Then there's the button battery in the main console - it has no child-resistant protection as the cover comes off easily and is easily accessible to young children and that's a clear and present DANGER to toddlers according to the ACCC. Then there's the Wunderground weather site on the computer... Trying to find MY PWS there is not straightforward. It says I'm in Sydney, neglecting to mention the suburb!!! And trying to find MY details online is a black art in itself. I can set the location of other favourite cities and towns and switch to them ok but if I want to come to MY home PWS there's no entry for Home. I eventually found a direct link but not in the web interface. Most unhelpful. Anyway it's in now and I got it working but it took way longer than it should've. Not looking forward to replacing worn out batteries in the future. I'll have to re-pair the devices. Not sure how long the button battery will hold the data on the console either when the power's out. No specs on that and the instructions don't seem to indicate that there's a button battery charge indicator anywhere. One other annoyance is there's no automatic daylight saving time setting. My EST is +10 h, but in daylight savings it's +11 h from GMT. Have to change this manually it seems... What are computers and time servers for???
So I could've been happier. But I'm not thrilled, which is why I've downgraded the rating to 4 stars.

Peter G

I had read a lot of reviews and wanted to have a unit that I can connect to the internet. This weather station looked really good regarding the specs and it was inexpensive. I have had it now for 7 months. I wanted to wait before I write a review. So far I am impressed by it. Does everything I wanted and it seems like a good entry wifi weather station.


I bought this weather station about a month ago and love it. The weather station links to a global weather site that adds your data to it. It was easy to set up, the instructions were clear, and when I wasn’t sure how to get it to go online the Holman site had all the answers.

Aspect Wi-Fi Analyst Weather Station

Aspect Wi-Fi Analyst

Wi-Fi connection to Weather Underground
Battery Powered Outdoor Sensor
Indoor Sensor and Data Display Included

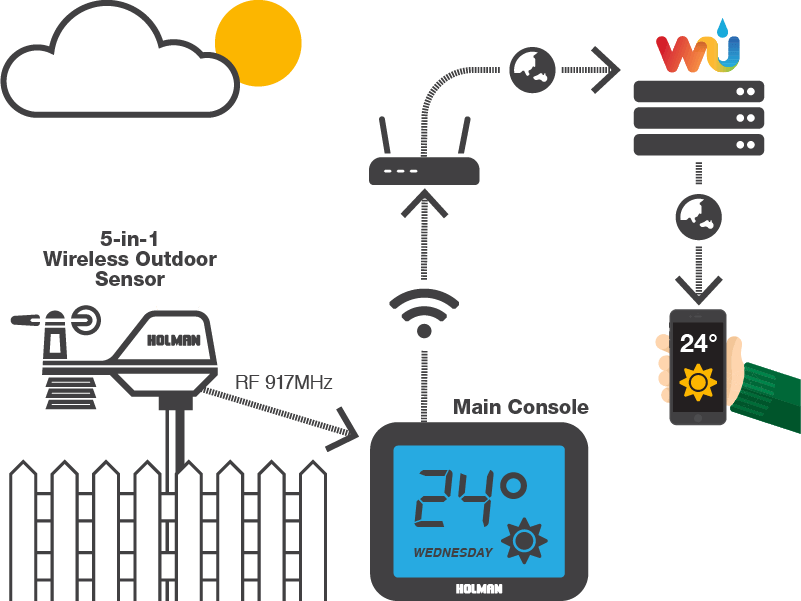

How it works

Download on the App StoreGet it on Google Play
12 local weather data points including:
  • Temperature
  • Air Pressure
  • Humidity
  • Wind Speed
  • Wind Direction
  • Rainfall
  • Moon Phase
  • Time & Date
  • Forecast
  • Wind Chill
  • Dew Point
  • Heat Index
aspect-analyst-outdoor Weather Station
5-in-1 Outdoor Sensor
  • Dimensions: 343.5 × 393.5 × 136mm
  • Weight: 734g (with batteries)
  • Main power: 3 × AA size 1.5V batteries (Lithium batteries recommended)
  • RF transmission range: 150m
  • RF frequency: 917MHz

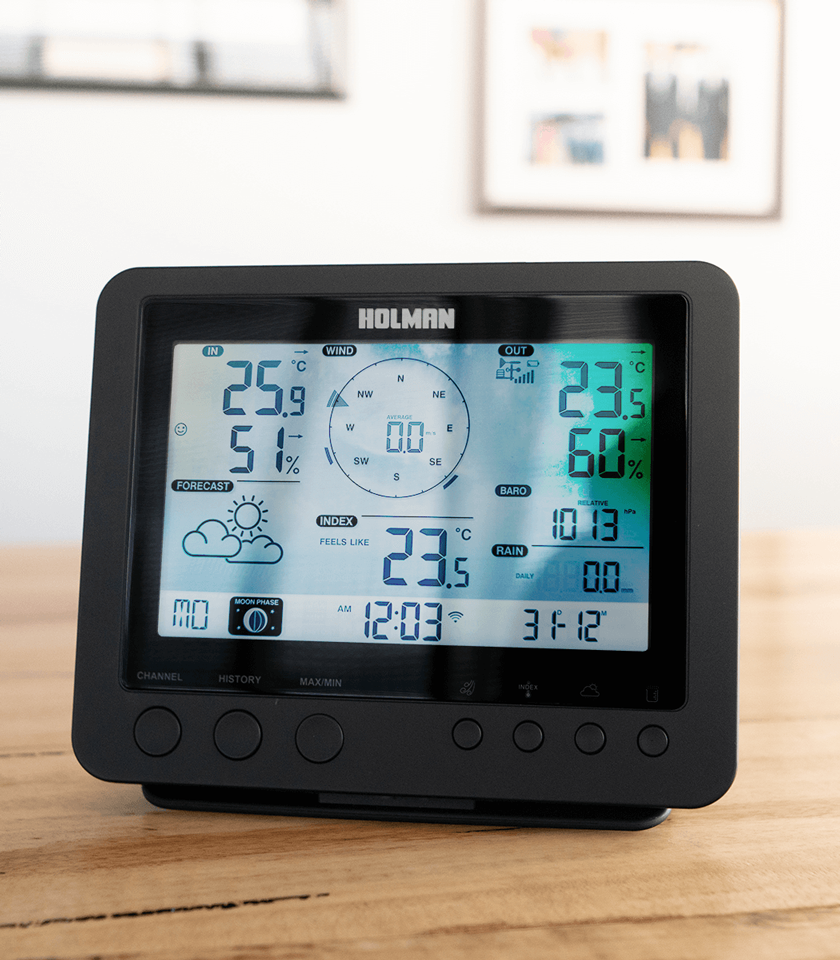

Main Console/Indoor Sensor
  • Dimensions: 136 × 168 × 24.5mm
  • Weight: 370g (with batteries)
  • Main power: DC 5V, 1A adaptor
  • Operating temperature range:
    -5˚C ~ 50˚C
  • Wi-Fi standard: 802.11 b/g/n
  • Wi-Fi operating frequency: 2.4GHz
