VH7324 Splitter PRO

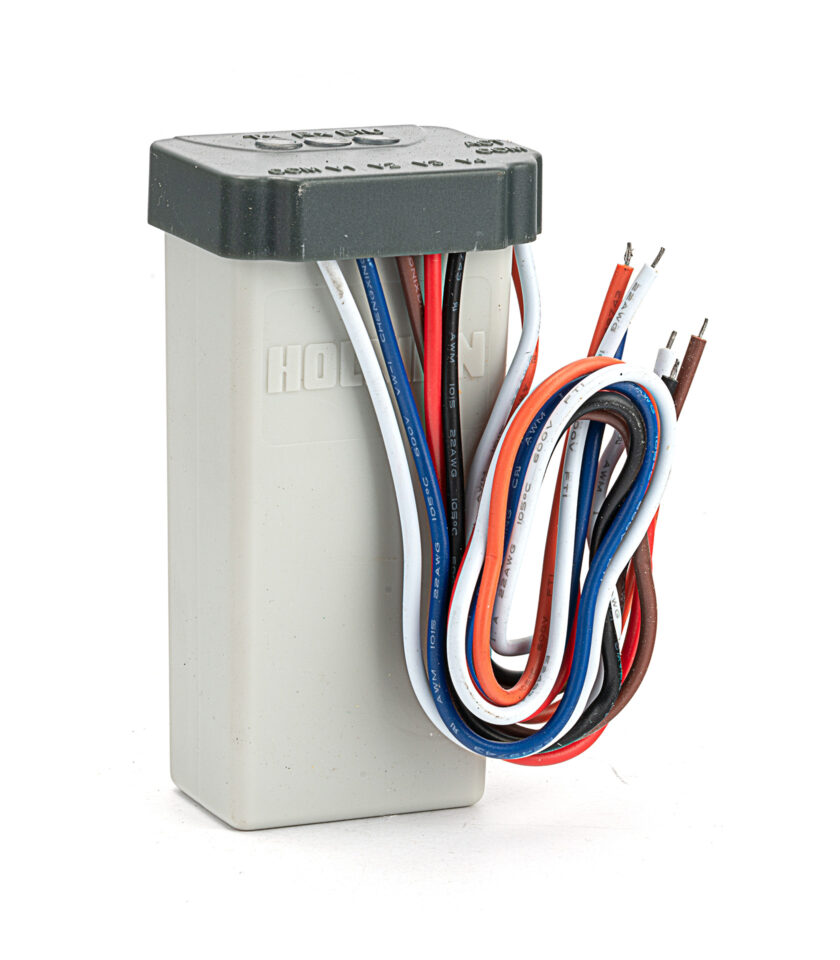

Automatic Splitter PRO

Operate up to 4 valves from a single pair of control cables on a single controller station. The Automatic Splitter PRO is designed to split an existing single station on your irrigation controller and a single active cable into up to 4 identically timed, sequentially operated valves. You simply program the controller station for the total amount of run time required by all valves connected to the Splitter PRO. This model will sense how many valves are connected to the splitter and will split the run time equally.

The Splitter PRO works by dividing the previous total programmed run time by the number of connected valves. It then applies the run time to each valve

  • Automatic Splitter Pro is located at the existing valve and utilises existing field wiring

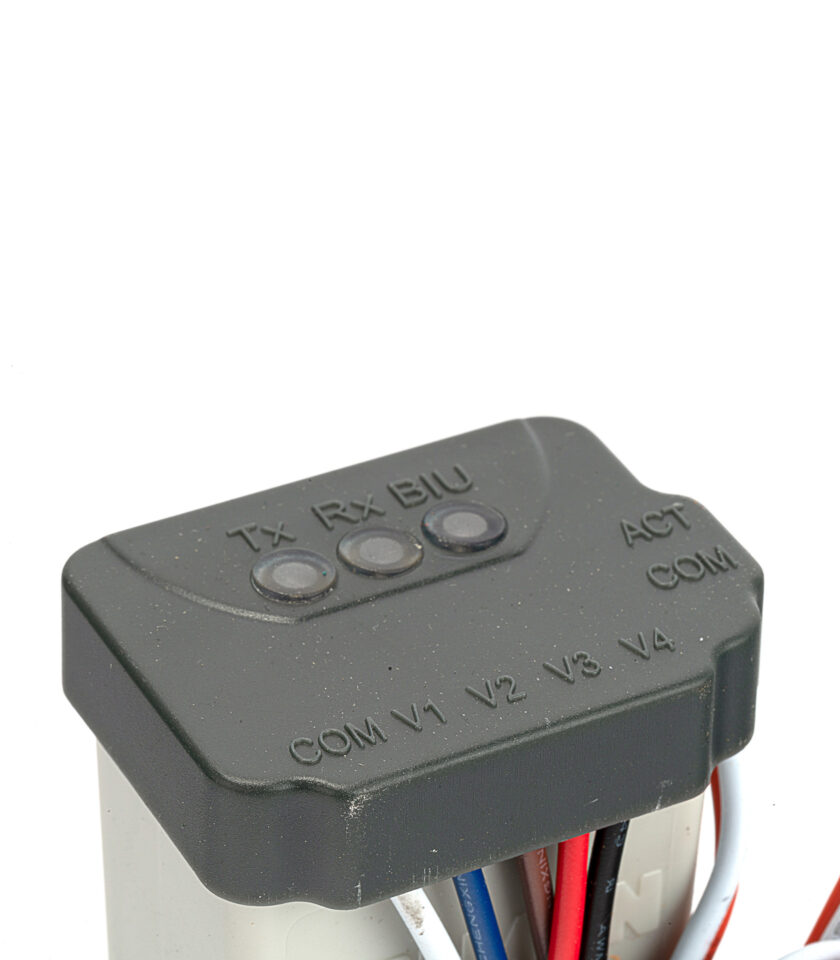

  • LEDs indicate status
  • Automatically senses if a coil is connected
  • Program your controller for the total run time required for all valves

SKUVH7324 Category
Close
Additional information
Weight0.195 kg
Dimensions40 × 120 × 210 mm
Close
Instructions

Instructions

View Tech Sheet

How Does it Work?

The Splitter PRO works by dividing the previous total programmed run time by the number of connected valves. It then applies the run time to each valve.

In the initial set up the Splitter PRO will rotate the run time between all connected solenoid valves. So it starts by putting 1 minute on each connected valve. If power continues to be supplied, the Splitter PRO will double the previous run time (ie. 2 minutes) and apply to all valves. If time is still running, the Splitter PRO will apply 4 minutes to each valve.

This process continues until all programmed time is used. The next time the Splitter PRO runs it will divide the last run time total by the number of solenoid valves. To have a longer run time on one valve connected to the Splitter PRO, simply connect 2 outlets of the Splitter PRO to one valve. This valve will then run twice as long as the other valves.



Watering Time

To increase the watering time
If the programmed watering time is increased, the valves will run for the time as set previously. The cycle will start again from valve 1. Each valve will run at the previously set time until extra time has been run. At the next start time the new watering time will be split equally between all the valves.

To reduce the watering time
If the programmed watering time is reduced, the valves will run for the time as set previously until the new time has been completed. At the next start time the new watering time will be split equally between all the valves.

Note: If the station with the Splitter PRO is run manually it should be set for the same time as the total automatic run time. Do not interrupt a watering cycle as this will change the next automatic schedule.
