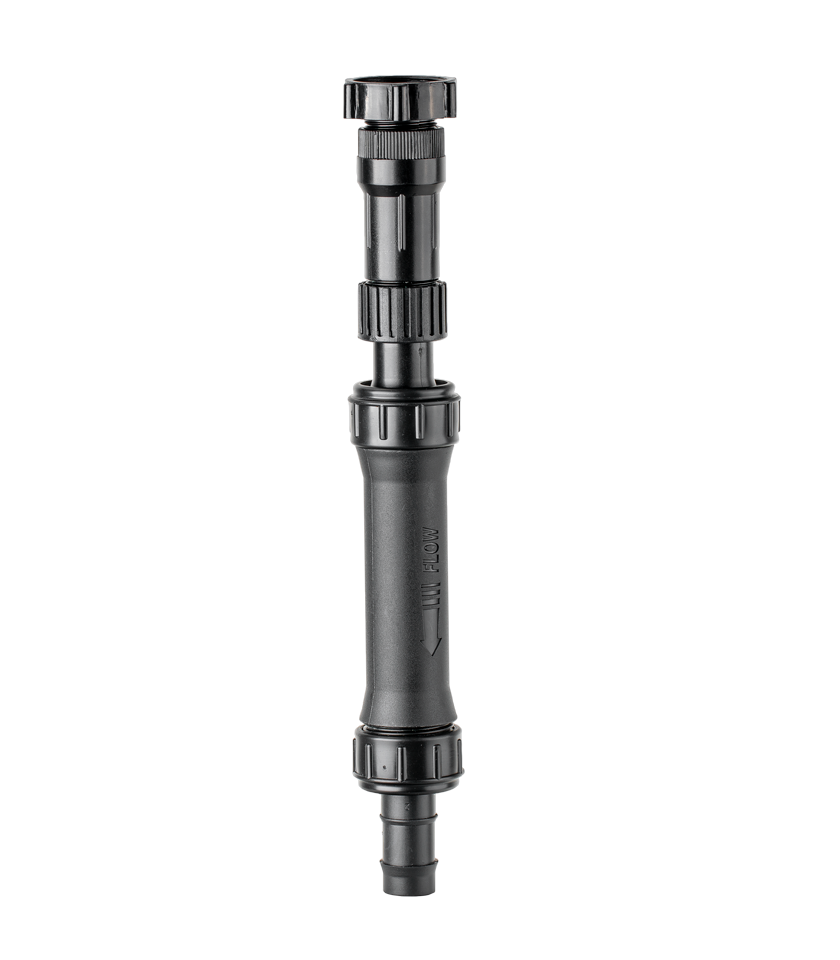

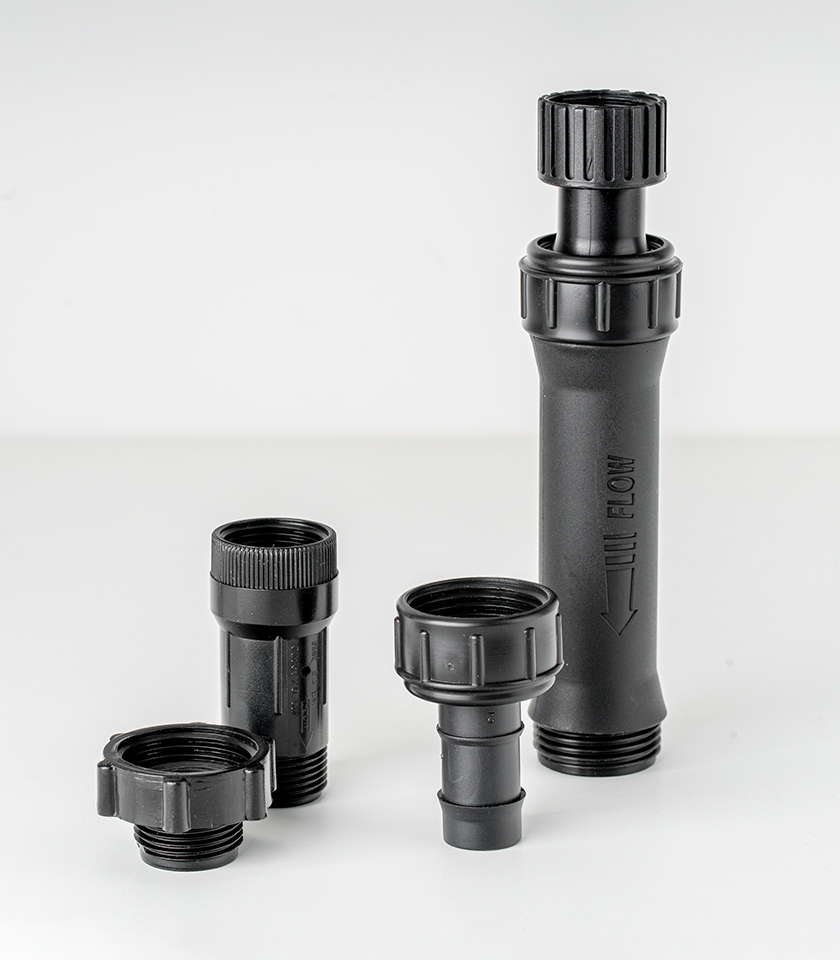

19mm Pressure Reducer with Filter Assembly

Drip Systems use low water pressure to operate efficiently. This two-stage assembly reduces the water pressure before filtering it to the drip system. Dripline and conventional drippers emit water from tiny outlets and require filtered water to avoid blockages. Always protect the system by using a filter. Blockages will stop the drip line from operating. Install from a water source with a pump, directly onto a tap, or along the mainline in the garden but locate “inline and before” the irrigation.

Specifications: Pressure Reducer – Inlet: Maximum 10bar (1000kPa), Inlet thread size: 3/4″ BSP (female), Outlet: 1.8 bar (180kPa), Outlet thread size: 3/4″ BSP (male)

Filter – Inlet thread size: 1″ BSP (male), Outlet: 19mm Barbed end

  • Reduces water pressure to 180kPa
  • Quick access to the easy-clean filter
  • Suitable for drip applications

Fitting Size: 19mm
Buy Online at Bunnings
SKU102709 Categories,
Barcode: 9319841027093
Close
Additional information
Weight0.08 kg
