15m Wall Mounted Hose Reel

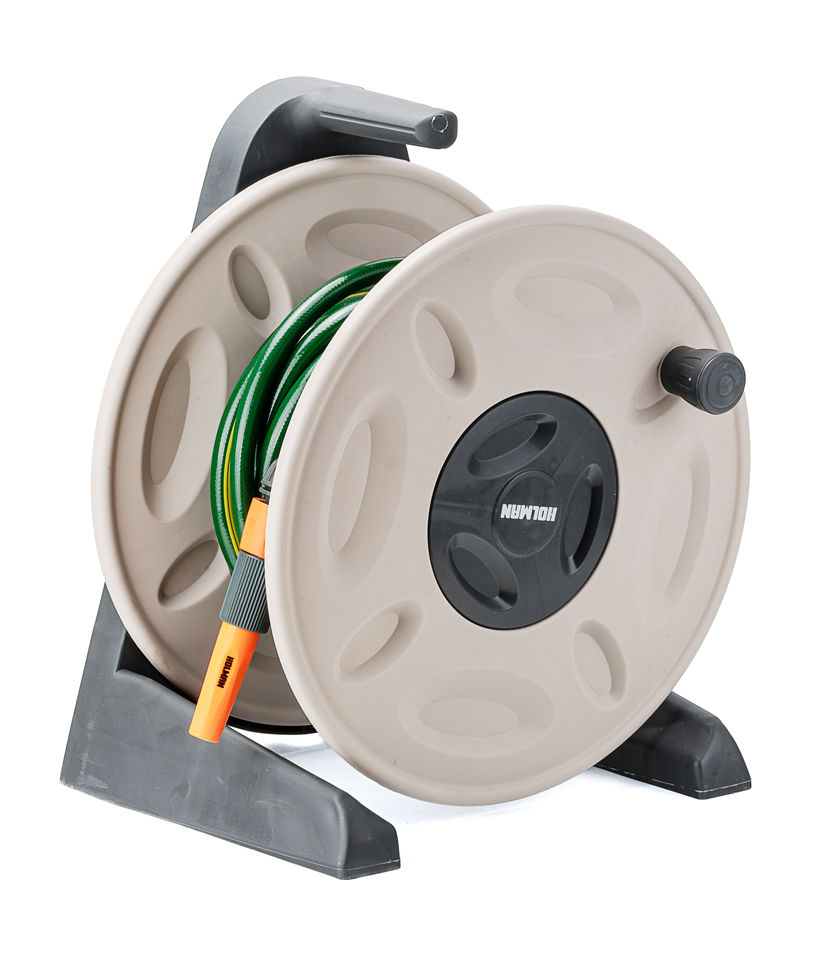

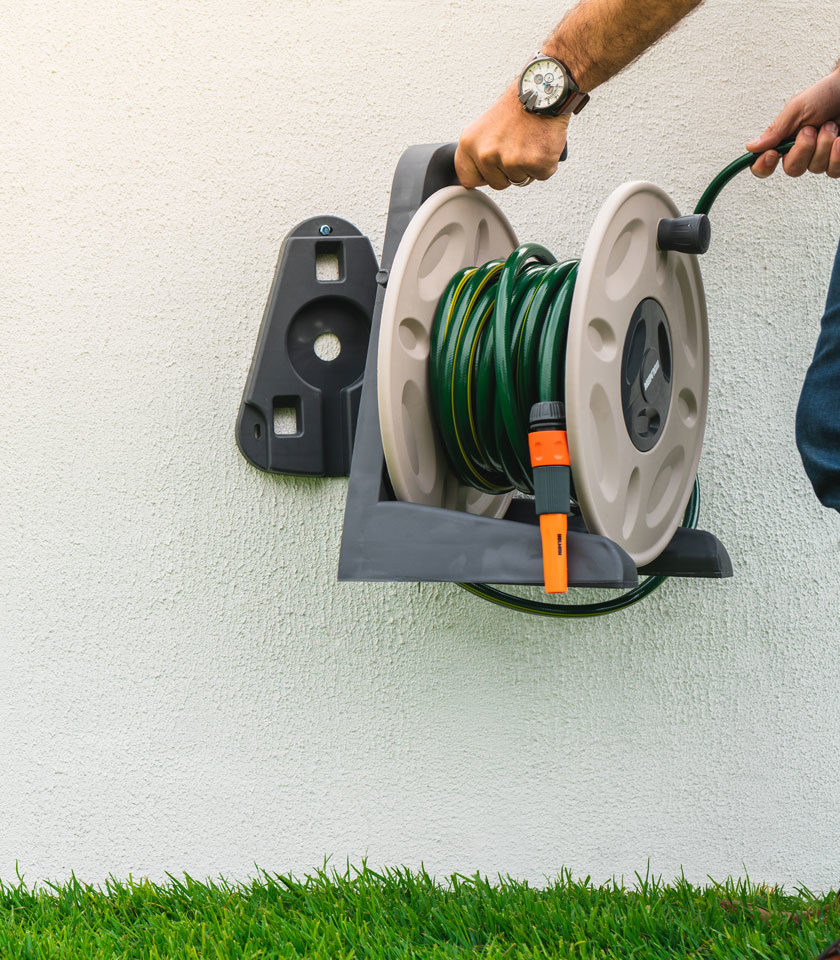

The Wall Mounted Hose Reel bolts securely to a wall and winds up manually with easy to use handle. It includes a 15 metre quality reinforced garden hose that is fitted with 12mm hose fittings and an adjustable spray nozzle. It has a large easy to bolt on bracket. The Hose Reel has a carry handle and can be removed from the bracket for storage when away on holidays.

Package Includes:

1× Wall Mounted Hose Reel
1× Clip-on Wall Bracket
1× 15m Reinforced Garden Hose
1× 1m Tap To Reel Leader Hose
1× Adjustable Spray Nozzle
1× 20mm/25mm BSP Tap Adaptor
3× 12mm Snap-on Hose Connectors
3× Bolts And Wall Plugs

Buy Online at Bunnings

Additional information

Weight	4.3 kg
Dimensions	355 × 435 × 260 mm

INSTALLATION

Mark inside the centre of each of the Clip-On Wall Bracket holes to prepare for drilling.

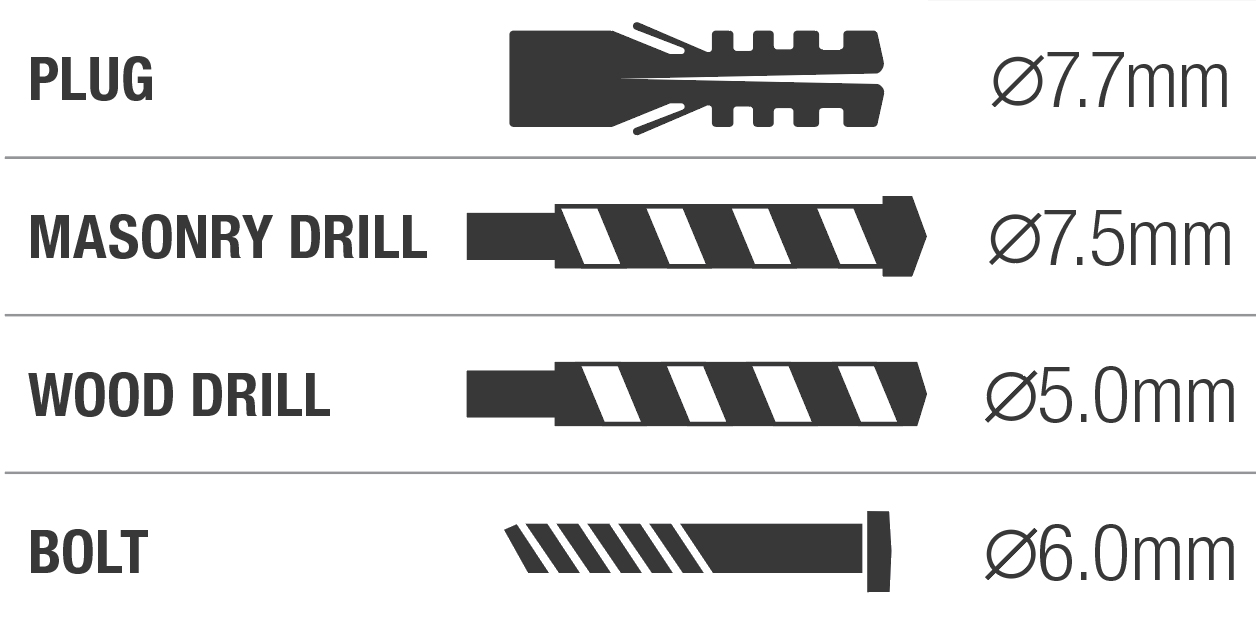

Use the table below to select the correct drill bit for your Wall Mounted Hose Reel.
If using plugs that were not included with your Wall Mounted Hose Reel, drill slightly undersize as masonry materials all have different properties which will ensure the wall plugs have a secure fit.
It is very important to use the correct size drill bit, so a very secure fit of the wall bracket is made before installing the Wall Mounted Hose Reel.
When ready, drill all three holes, then hammer the wall plugs gently into your wall.
Place the Bracket over the three holes and screw in each Bolt until they have a secure hold on the Bracket.
