K-Rain PRO-S Pop-up Sprinkler

K-Rain PRO-S Pop-up Sprinkler

Share Button
The K-Rain PRO S® is a tough and robust pop up sprinkler that ideally suits the contractor. This commercial quality pop up sprinkler can be purchased with a pre-fitted nozzle or pre-fitted with a flushing cap.

Pro_S_Irrigation_Spray_Co_Molded_Wiper_Seal

Flushing Cap: When an irrigation system is built, it often has a build up of dirt & debris in the system, before it is turned on. The PRO S® is equipped with a flushing cap (blue) which allows the system to be turned on & purged, cleaning out any dirt & debris. The flushing cap also allows a system to be tested first, before any nozzles are fitted. The PRO S riser stem features an industry standard male thread, this accepts ALL brands of female threaded nozzles.

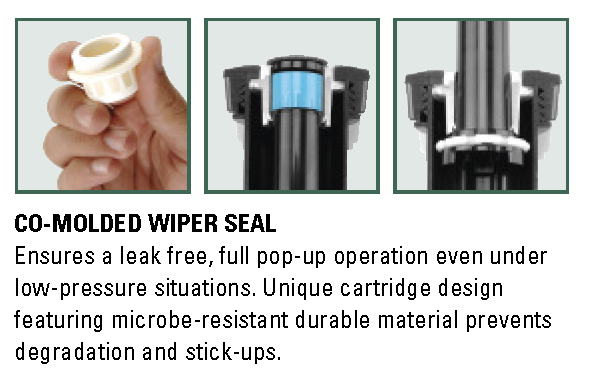

Co-moulded Wiper Seal: is a great innovative feature! Other sprinklers have a seperate seal which gets lost, damaged or incorrectly installed. The co-moulded seal in the PRO S is a integral part of the cap, so it improves the reliability, guarantees it’s always included in the assembly, and prevents being damaged, ensuring a leak free sprinkler

Microbe Resistant Seal: Soils contain many types of microbes. Over time, these microbes eat away & deteriorate rubber seals, causing leaking & broken sprinklers. The PRO S range of pop up sprinklers have a “Microbe Resistent Seal”. The polymer used to make the seal prevent the microbes attacking the seal, increasing the life span of the the sprinkler by making this seal last longer! K-Rain provide a factory supported warranty for up to 5 years.

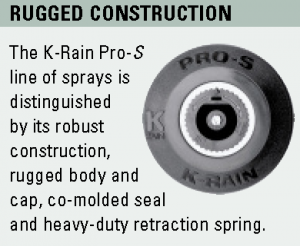

Pro_S_Irrigation_Spray_Rugged_Construction

Ratcheting Riser: The ratcheting riser in the PRO S is a great feature! It allows the spray pattern to be easily adjusted into position. The ratchet at the base of the riser stem allows you to “re-orientate” the spray pattern to cover the correct area in the garden or lawn, once the nozzle has been fitted.

Heavy Duty Retraction Spring: Using a high quality spring, the PRO S® is guaranteed to retract fully everytime! This protects your nozzle and prevents any damage to the sprinkler itself, keeping your system fully operational and reliable.

Suitable for low pressure applications: The design of the PRO S® sprinkler allows “full pop up height” when operating at low pressures, making this quite a ideal sprinkler choice for your garden or lawn.

Product Code: KR7802, KR7803, KR7804, KR7812, KR7813, KR7814, KR7821, KR7822, KR7823, KR7824
Brand: K-Rain
Features:

  • Pressure rating – 20 to 70 PSI
  • Flow by – 0 at 8 PSI (0.6 bar) or greater; 0.10 GPM otherwise
  • Precipitation rate – .4 to 4 in/hr
  • Inlet – ½” NPT Female Thread
  • Co-Molded Wiper Seal-Ensures a leak-free, full pop up operation, even under low pressure situations. Cartridge design allows for easy removal and cleaning.
  • Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
  • Accepts Female Threaded Nozzles.
  • Ratcheting Riser-Permits quick, easy alignment of spray pattern.
  • Heavy-Duty Retraction Spring-Strongest spring in the industry for positive retraction in all soil conditions.
  • Side and Bottom inlets on 6” and 12” models.
  • Pre-Installed flush cap.
  • Optional In-Stem Pressure Regulator available for 4”, 6” and 12” models.

K-Rain-Popup-PRO-S

Product Name
24151 PRO S 4″ POP-UP SPRAY W/ 15′ ADJUSTABLE PATTERN NOZZLE
24152 PRO S 4″ POP-UP SPRAY W/ 15′ FULL CIRCLE FIXED PATTERN NOZZLE
24153 PRO S 4″ POP-UP SPRAY W/ 15′ HALF CIRCLE FIXED PATTERN NOZZLE
24154 PRO S 4″ POP-UP SPRAY W/ 15′ QUARTER CIRCLE FIXED PATTERN NOZZLE
78002 Pro S 2″ Pop-Up Spray Body
78002-RCW Pro S 2″ Pop-Up Spray Body for Reclaimed Water Use
78003 Pro S 3″ Pop-Up Spray Body
78003-RCW Pro S 3″ Pop-Up Spray Body for Reclaimed Water Use
78004 Pro S 4″ Pop-Up Spray Body
78004-CV Pro S 4″ Pop-Up Spray Body with Pre-Installed Check Valve
78004-PR Pro S 4″ Pop-Up Spray Body with Pressure Regulator
78004-RCW Pro S 4″ Pop-Up Spray Body for Reclaimed Water Use
78006 Pro S 6″ Pop-Up Spray Body
78006-CV Pro S 6″ Pop-Up Spray Body with Pre-Installed Check Valve
78006-PR Pro S 6″ Pop-Up Spray Body with Pressure Regulator
78006-RCW Pro S 6″ Pop-Up Spray Body for Reclaimed Water Use
78012 Pro S 12″ Pop-Up Spray Body
78012-CV Pro S 12″ Pop-Up Spray Body with Pre-Installed Check Valve
78012-PR Pro S 12″ Pop-Up Spray Body with Pressure Regulator
Download the Manuals for the PRO-S Popup Sprinklers
