STORM PVC ELBOW M&F
The Holman Male & Female Elbow is for use with Stormwater pipes. Holman Stormwater fittings are made from quality recycled PVC and are used for stormwater and rainwater drainage. Ideal for designing and setting up of plumbing for residential and commercial buildings Complies with AS/NZS1254 – AMI 70007.
| Code | Description | Bag | Box | |
|---|---|---|---|---|
 | SWF0510 | 75mm 45º | - | 110 |
 | SWF0520 | 90mm 15º | - | 120 |
 | SWF0530 | 90mm 22.5º | - | 90 |
 | SWF0540 | 90mm 45º | - | 80 |
 | SWF0550 | 90mm 90º | - | 50 |
 | ELBM150X5MF | 150mm 5º | - | 18 |
 | ELBM150X15MF | 150mm 15º | - | 18 |
| ELBSW150X22MF | 150mm 22º (F) | - | - |
| ELBM150X30MF | 150mm 30º | - | 18 |
 | ELBM150X45MF | 150mm 45º | - | 18 |
 | ELBM150X90MF | 150mm 90º | - | 8 |
| ELBSW225X5MF | 225mm 5º (F) | - | - |
| ELBM225X15MF | 225mm 15º | - | 4 |
| ELBSW225X22MF | 225mm 22º (F) | - | - |
| ELBSW225X30MF | 225mm 30º (F) | - | - |
| ELBM225X45MF | 225mm 45º | - | 4 |
| ELBM225X88/90MF | 225mm 88/90º | - | 4 |
| ELBSW300X15MF | 300mm 15º (F) | - | - |
| ELBSW300X22MF | 300mm 22º(F) | - | - |
| ELBM300X45MF | 300mm 45º | - | 4 |
| ELBM300X90MF | 300mm 90º | - | 2 |
| ELBSW375X45MF | 375mm 45º (F) | - | - |
| ELBSW375X90MF | 375mm 90º (F) | - | - |
Tech Sheet 5º
Tech Specs
- Model Name: Storm Fabfit Bend M&F 150mm 5º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| ELBM150X5MF | 150mm 5º | 5º | 150mm | – | – |
| ELBSW225X5MF | 225mm 5º (F) | 5º | 225mm | – | – |

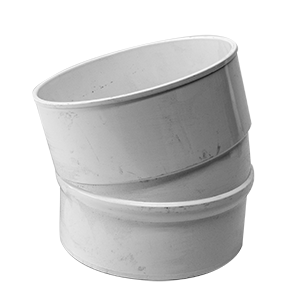

Tech Sheet 15º
Tech Specs
- Model Name: Storm PVC Elbow M&F 90mm 15º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0520 | 90mm 15º | 15º | 90mm | W:90 H:110 L:110 | 0.08kg |
| ELBM150X15MF | 150mm 15º | 15º | 150mm | – | – |
| ELBM225X15MF | 225mm 15º | 15º | 225mm | – | – |
| ELBSW300X15MF | 300mm 15º (F) | 15º | 300mm | – | – |
Tech Sheet 22º
Tech Specs
- Model Name: Storm Fabfit Bend M&F 150mm 22º (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| ELBSW150X22MF | 150mm 22º (F) | 22º | 150mm | – | – |
| ELBSW225X22MF | 225mm 22º (F) | 22º | 225mm | – | – |
| ELBSW300X22MF | 330mm 22º (F) | 22º | 300mm | – | – |
Tech Sheet 22.5º
Tech Specs
- Model Name: Storm PVC Elbow M&F 90mm 22.5º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0530 | 90mm 22.5º | 22.5º | 90mm | W:95 H:120 L:120 | 0.09kg |
Tech Sheet 30º
Tech Specs
- Model Name: Storm Fabfit Bend M&F 150mm 30º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| ELBM150X30MF | 150mm 30º | 30º | 150mm | – | – |
| ELBSW225X30MF | 225mm 30º (F) | 30º | 225mm | – | – |
Tech Sheet 45º
Tech Specs
- Model Name: Storm PVC Elbow M&F 75mm 45º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0510 | 75mm 45º | 45º | 75mm | W:95 H:120 L:120 | 0.06kg |
| SWF0540 | 90mm 45º | 45º | 90mm | W:95 H:120 L:120 | 0.09kg |
| ELBM150X45MF | 150mm 45º | 45º | 150mm | – | – |
| ELBM225X45MF | 225mm 45º | 45º | 225mm | – | – |
| ELBM300X45MF | 300mm 45º | 45º | 300mm | – | – |
| ELBSW375X45MF | 375mm 45º (F) | 45º | 375mm | – | – |

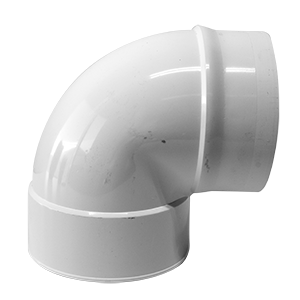

Tech Sheet 90º
Tech Specs
- Model Name: Storm PVC Elbow M&F 90mm 90º
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0550 | 90mm 90º | 90º | 90mm | W:140 H:110 L:95 | 0.15kg |
| ELBM150X90MF | 150mm 90º | 90º | 150mm | – | – |
| ELBM225X88/90MF | 225mm 88/90º | 90º | 225mm | – | – |
| ELBM300X90MF | 300mm 90º | 90º | 300mm | – | – |
| ELBSW375X90MF | 375mm 90º | 90º | 375mm | – | – |
