Scene Automation Example - Water Zone 1 @ 7am on Sun, Tue, Thu & Sat and send an app notification

Using your connected WX8 create an Automation scenario that will water Zone 1 at 7am on Sundays, Tuesdays, Thursdays and Saturdays and send an app notification.

Note: This automation will not be influenced by any attached Rain Sensor and so will water regardless.
Note: It is not possible to water more than one Zone at a time unless you choose Start A, Start B or Start C.

This is a screenshot of the finished example, see below for the steps required to create it.
Scenario screen

  1. From the Scene screen with Automation chosen, choose + (the top right hand corner)
    2. Scene screen

  2. Choose For a Schedule
    3. Create Scene screen

  3. Choose a time - 7am in this example and then choose Once
    4. Schedule screen

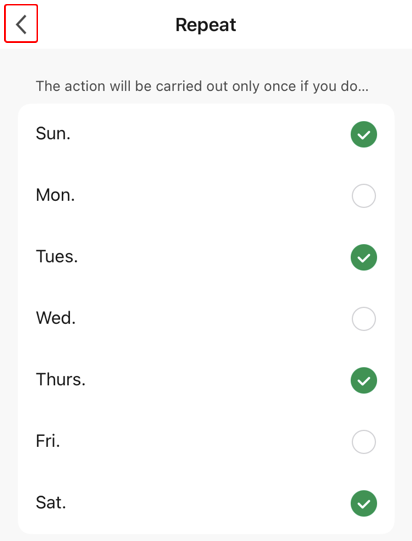

  4. Tick the appropriate days of the week you need the schedule to run and then choose <
    5. Repeat screen

  5. Choose Next
    6. Schedule screen

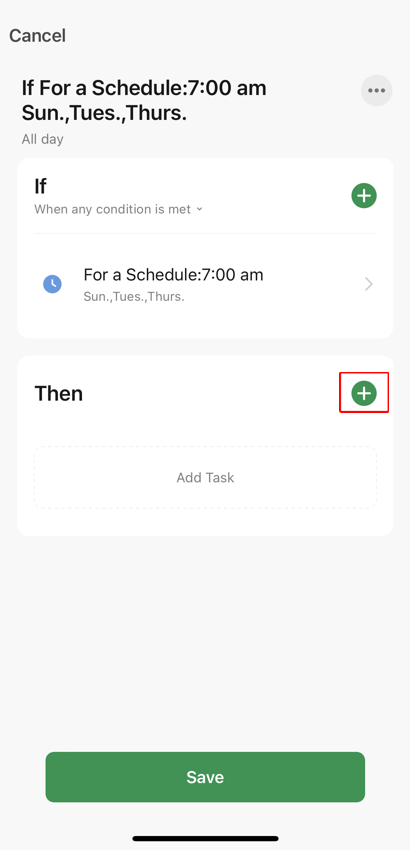

  6. From the Then section choose +
    7. Set up task screen

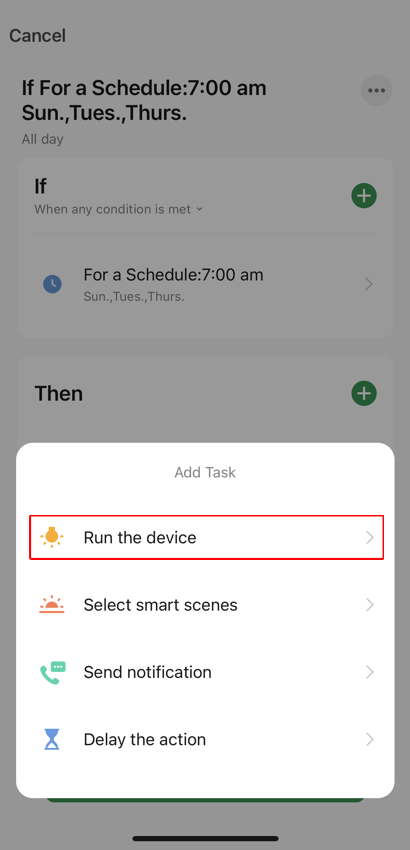

  7. Choose Run the device
    8. Create Scene screen

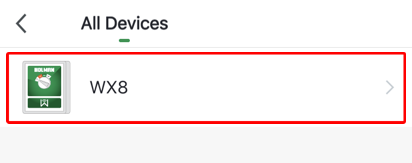

  8. Choose WX8
    9. All Devices screen

  9. Choose Zone 1
    10. Select Function screen

  10. Tick the on Switch and then choose Save
    11. Switch screen

  11. Choose Next
    12. Select Function screen

  12. From the Then section choose +
    13. Create new Scene screen

  13. Choose Send notification
    14. Edit Name screen

  14. Choose Message Center and then choose Next
    15. Edit Name screen

  15. Choose ... to give the scenario a better name
    16. Edit Name screen

  16. Tap in the default name and edit it. Pressing x to remove it allows for easier editing. Then choose OK
    Edit Name screen

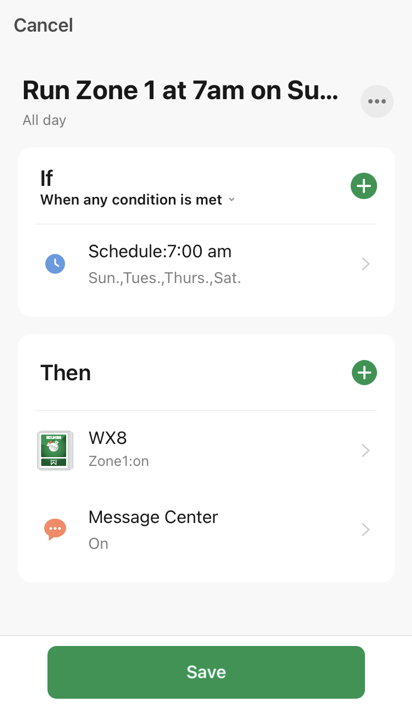

  17. Confirm everything is correct and then choose Save

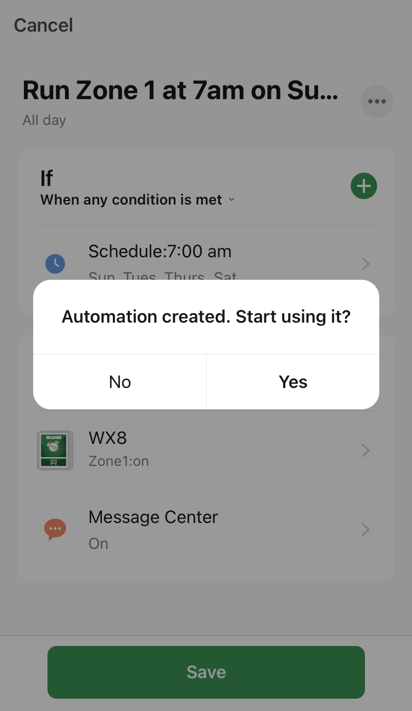

    18. Creat new Scene screen

  18. Choose Yes to start using the new Automation

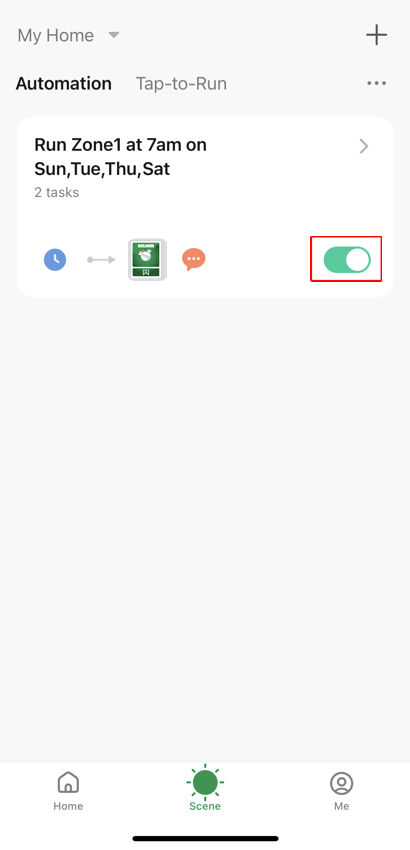

    19. Scene screen

  19. View all your Automation scenarios. Note it is possible to disable the Automation scenario using the toggle in the red box below
    20. Home screen
